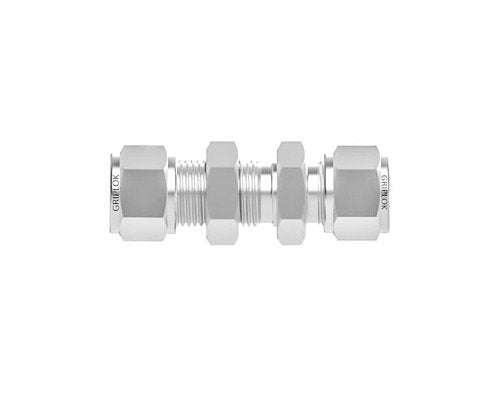

Griplok Bulkhead Union - 1/4 Tube Fitting x 1/4 Tube Fitting, 316 SS
Griplok Bulkhead Union - 1/4 Tube Fitting x 1/4 Tube Fitting, 316 SS
SKU:SSP-59a8fc
High-grade 316 SS Griplok Bulkhead Union, 1/4 Tube Fitting x 1/4 Tube Fitting, precise dimensions for secure connections.
Regular price
$24.18
Regular price
Sale price
$24.18
Unit price
per
Initiate Order
Griplok Bulkhead Union - 1/4 Tube Fitting x 1/4 Tube Fitting, 316 SS
$24.18
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Union - 1/4 Tube Fitting x 1/4 Tube Fitting, 316 SS
$24.18
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Bulkhead Union is expertly crafted from high-grade 316 SS material for exceptional durability and corrosion resistance, ensuring reliable performance in demanding environments. This fitting features a secure connection with both ends designed as 1/4 inch Tube Fittings, providing a tight seal. With dimensions meeting precise specifications, including an E Minimum Opening of 0.19 inches, the Griplok Bulkhead Union is engineered for seamless integration and long-lasting functionality. Ideal for instrumentation tube fitting applications, this Griplok fitting offers superior quality and performance.

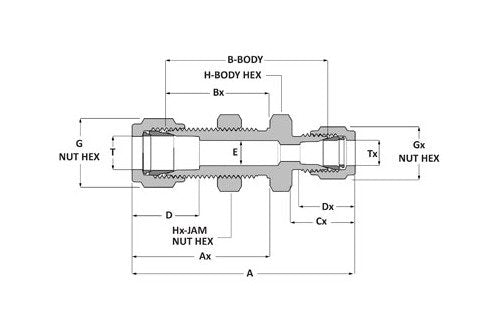

Product Specifications
Dimensions A
2.31 in
Dimensions Ax
1.32 in
Dimensions B
1.69 in
Dimensions Bx
1.03 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E Minimum Opening
0.19 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Tube Fitting
Specifications End Connections
TF x Tube Fitting
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
24.18 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
