Griplok Calibration Union - Alloy 400, Brass, 1/4 x 1/8, Straight
Griplok Calibration Union - Alloy 400, Brass, 1/4 x 1/8, Straight
SKU:SSP-9c8785
Precision-engineered Griplok Calibration Union for seamless calibration integration, Alloy 400 & brass, 1/4 x 1/8.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Griplok Calibration Union - Alloy 400, Brass, 1/4 x 1/8, Straight
$34.99
Quantity: 1
Claim Your Seller Account
Griplok Calibration Union - Alloy 400, Brass, 1/4 x 1/8, Straight
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

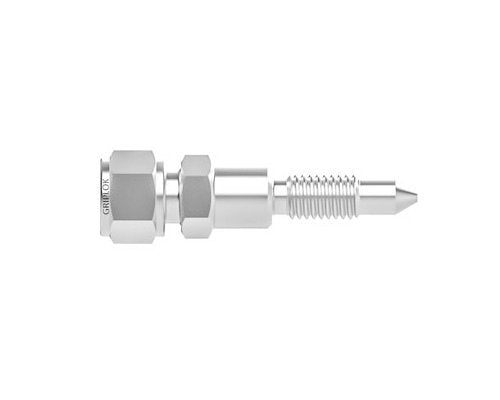

The Griplok Calibration Union is a precision-engineered fitting designed for seamless calibration integration. Crafted from durable Alloy 400 and brass, it ensures reliable performance in demanding environments. With a 1/4 Tube fitting x 1/8 Calibration configuration, it guarantees a secure and leak-free connection. This union, part of the Griplok series, meets exacting industry standards for calibration fittings.
Product Specifications

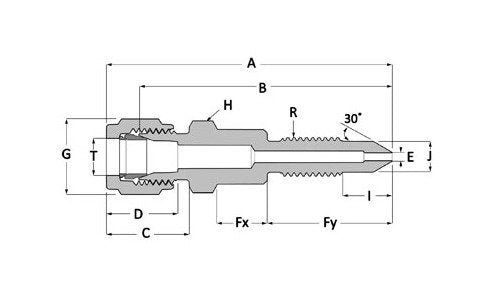

Dimensions A
1.63 in
Dimensions B
1.40 in
Dimensions C
0.74 in
Dimensions D
0.54 in
Dimensions E
0.06 in
Dimensions Fx
0.41 in
Dimensions Fy
1.0 in
Dimensions G
9/16 in
Dimensions H
1/2 in
Dimensions I
0.43 in
Dimensions J
0.20
Dimensions R
1/4-24 UNF
Dimensions T
1/4 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4-28 UNF
Specifications Connection 2 Type
Calibration
Specifications End Connections
TF x Calibration
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Calibration
Category 6
Griplok® Tube Fittings
