Griplok Hose Barb Connector - 1/4 Tube x 1/8 Hose Barb
Griplok Hose Barb Connector - 1/4 Tube x 1/8 Hose Barb
SKU:SSP-4e94fd
High-quality Griplok Hose Barb Connector with Alloy 400 construction, 1/4 Tube x 1/8 Hose Barb sizes. Ideal for precision instrument applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Hose Barb Connector - 1/4 Tube x 1/8 Hose Barb
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Hose Barb Connector - 1/4 Tube x 1/8 Hose Barb
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

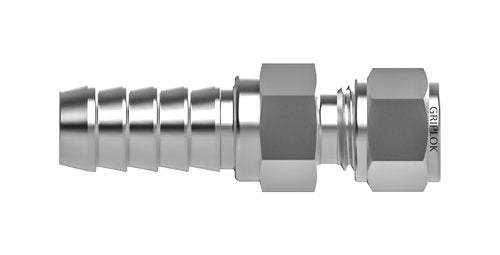

The Griplok Hose Barb Connector is a high-quality fitting designed for precision instrument applications. Made of Alloy 400, this connector features a 1/4-inch tube fitting and a 1/8-inch hose barb connection. With a temperature range of -15 to 350 °F, it ensures reliable performance in diverse environments. Its straight shape and durable construction make it ideal for secure connections, providing efficiency and longevity in fluid systems.

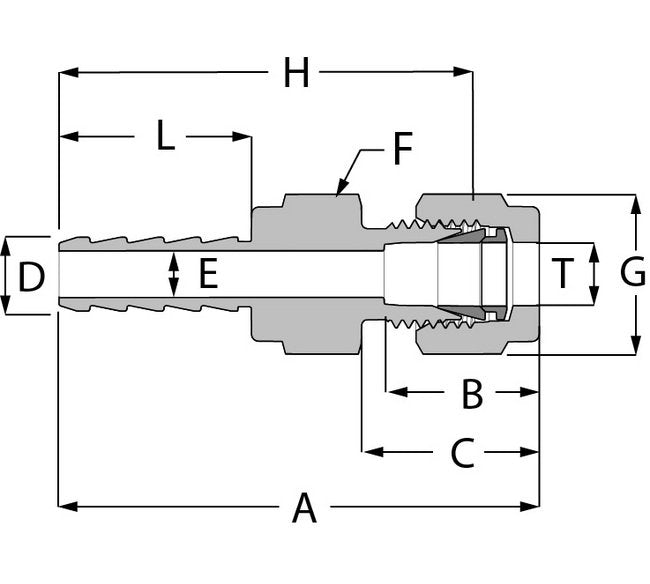

Product Specifications
Dimensions A
1.85 in
Dimensions B
0.64 in
Dimensions C
0.74 in
Dimensions D
0.30 in
Dimensions E
0.09 in
Dimensions F Hex Flat
7/16 in
Dimensions G
9/16 in
Dimensions H
1.56 in
Dimensions L
0.79 in
Dimensions T
1/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Hose Barb (Hose ID)
Specifications End Connections
TF x Hose Barb (Hose ID)
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Hose Id
1/4 in
Specifications Production Category
4
Specifications Shape
Straight
Specifications Temperature
-15 to 350 ºF
Category 6
Griplok® Tube Fittings
