Griplok Hose Barb Connector - Alloy 400, 1/4 in
Griplok Hose Barb Connector - Alloy 400, 1/4 in
SKU:SSP-1b8daf
Ensure secure tube-to-hose connections with the Griplok Hose Barb Connector. Alloy 400 construction, 1/4 in size, and -15 to 350 °F temperature range.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Griplok Hose Barb Connector - Alloy 400, 1/4 in
$25.99
Quantity: 1
Claim Your Seller Account
Griplok Hose Barb Connector - Alloy 400, 1/4 in
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

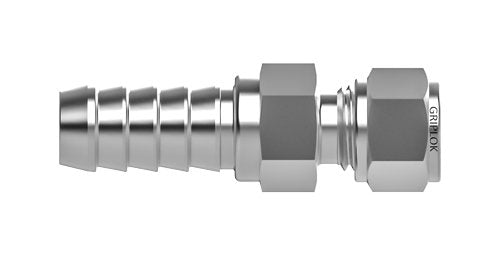

The Griplok Hose Barb Connector is designed for precise fittings, featuring a straight shape and Alloy 400 construction for durability. This connector ensures a secure 1/4 in tube fitting x 1/4 in hose ID connection, ideal for instrumentation applications. With temperature resistance from -15 to 350 °F, this connector guarantees reliable performance in various environments. Trust the Griplok brand for quality and precision in your tube fitting needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

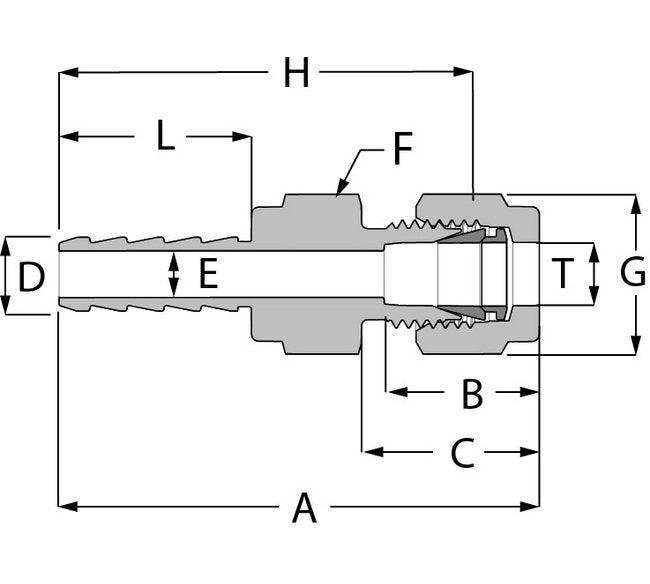

Dimensions A
1.94 in
Dimensions B
0.64 in
Dimensions C
0.74 in
Dimensions D
0.30 in
Dimensions E
0.19 in
Dimensions F Hex Flat
9/16 in
Dimensions G
9/16 in
Dimensions H
1.63 in
Dimensions L
0.79 in
Dimensions T
1/4 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Hose Barb (Hose ID)
Specifications End Connections
TF x Hose Barb (Hose ID)
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Hose Id
1/4 in
Specifications Production Category
4
Specifications Shape
Straight
Specifications Temperature
-15 to 350 ºF
Category 6
Griplok® Tube Fittings
