Griplok Hose Barb Connector - Brass, 1/4 inch Tube Fitting x 1/4 inch Hose Barb
Griplok Hose Barb Connector - Brass, 1/4 inch Tube Fitting x 1/4 inch Hose Barb
SKU:SSP-bf65c7
Enhance connections with Griplok Hose Barb Connector - Brass, 1/4 in Tube x 1/4 in Hose Barb. Ideal for instrumentation fittings.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Griplok Hose Barb Connector - Brass, 1/4 inch Tube Fitting x 1/4 inch Hose Barb
$12.99
Quantity: 1
Claim Your Seller Account
Griplok Hose Barb Connector - Brass, 1/4 inch Tube Fitting x 1/4 inch Hose Barb
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid system with the Griplok Hose Barb Connector. This brass connector features a 1/4-inch Tube Fitting on one end and a 1/4-inch Hose Barb on the other, ensuring secure and leak-free connections. With a temperature range of -15 to 350 °F, this connector is ideal for various applications. Its Griplok design offers reliable performance, making it a go-to choice for instrumentation tube fittings.

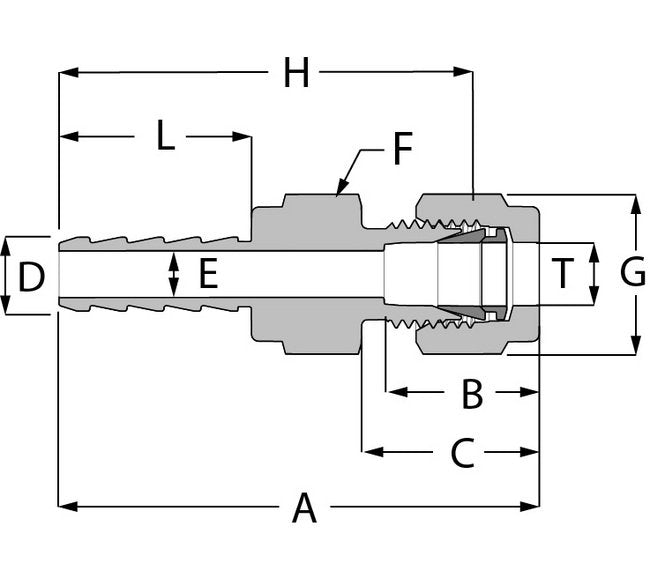

Product Specifications
Dimensions A
1.94 in
Dimensions B
0.64 in
Dimensions C
0.74 in
Dimensions D
0.30 in
Dimensions E
0.19 in
Dimensions F Hex Flat
9/16 in
Dimensions G
9/16 in
Dimensions H
1.63 in
Dimensions L
0.79 in
Dimensions T
1/4 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Hose Barb (Hose ID)
Specifications End Connections
TF x Hose Barb (Hose ID)
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Hose Id
1/4 in
Specifications Production Category
4
Specifications Shape
Straight
Specifications Temperature
-15 to 350 ºF
Category 6
Griplok® Tube Fittings
