Griplok Male Adapter - Alloy 400, 1/8 Tube Stub x 1/4-18 MNPT
Griplok Male Adapter - Alloy 400, 1/8 Tube Stub x 1/4-18 MNPT
SKU:FIT-91f8cb
Durable Griplok Male Adapter - Alloy 400, 1/8 Tube Stub x 1/4-18 MNPT for precise tube fittings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Male Adapter - Alloy 400, 1/8 Tube Stub x 1/4-18 MNPT
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Male Adapter - Alloy 400, 1/8 Tube Stub x 1/4-18 MNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

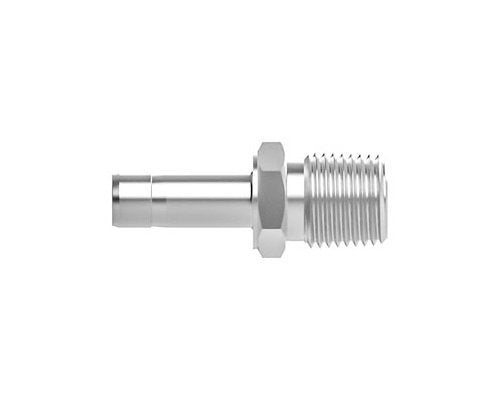

The Griplok Male Adapter in Alloy 400 features a 1/8-inch Tube Stub connection on one end and a 1/4-18 MNPT connection on the other, ensuring reliable and leak-free tube fitting transitions. This straight-shaped adapter, part of the Griplok series, offers precise dimensions with a 1.31-inch length, 9/16-inch height, and 1/8-inch and 1/4-inch size connections. With a compact design and corrosion-resistant Alloy 400 construction, this adapter guarantees durability and performance, making it ideal for instrumentation tube fittings in various applications.

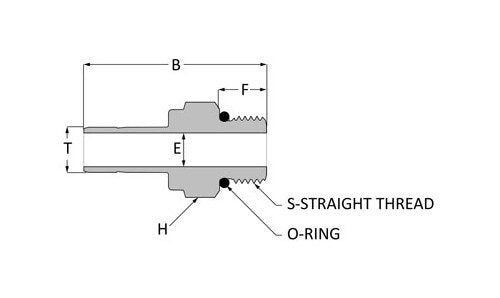

Product Specifications
Dimensions B
1.31 in
Dimensions E
0.05 in
Dimensions F Minimum
0.56 in
Dimensions H
9/16 in
Dimensions P
1/4 in
Dimensions T
1/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Stub
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
Tube Stub x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Tube Fitting Adapters - Griplok
