Griplok Male Connector 1/4 Tube Fitting x 1/2-14 MNPT - 316 SS
Griplok Male Connector 1/4 Tube Fitting x 1/2-14 MNPT - 316 SS
SKU:SSP-f51484
Premium Griplok Male Connector - 316 SS, 1/4 Tube x 1/2-14 MNPT, for precise instrument connections.
Regular price
$17.69
Regular price
Sale price
$17.69
Unit price
per
Initiate Order
Griplok Male Connector 1/4 Tube Fitting x 1/2-14 MNPT - 316 SS
$17.69
Quantity: 1
Claim Your Seller Account
Griplok Male Connector 1/4 Tube Fitting x 1/2-14 MNPT - 316 SS
$17.69
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

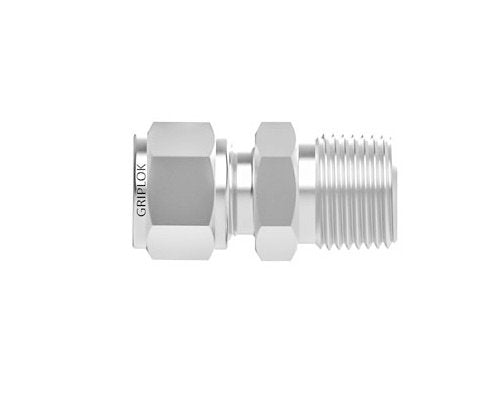

The Griplok Male Connector is a high-quality tube fitting designed for precise instrument connections. Made of durable 316 SS, this connector offers superior corrosion resistance and reliability. With a straight shape and TF x MNPT end connections, it ensures a secure fit for 1/4 in and 1/2 in tubing. Its compact dimensions and ergonomic design make installation easy and efficient, meeting the stringent standards of institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?

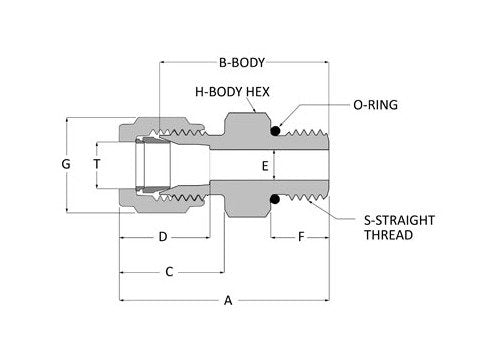

Product Specifications
Dimensions A
1.80 in
Dimensions B
1.47 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F Minimum
0.75 in
Dimensions G
9/16 in
Dimensions H
7/8 in
Dimensions P
1/2 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
17.69 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
