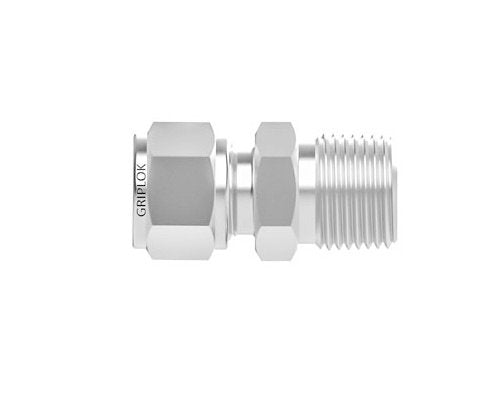

Griplok Male Connector - 316 SS, 1/16 Tube x 1/8-27 MNPT
Griplok Male Connector - 316 SS, 1/16 Tube x 1/8-27 MNPT
SKU:FIT-1c4ff1
High-quality Griplok Male Connector, 316 SS, 1/16 Tube x 1/8-27 MNPT, ideal for instrumentation applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Male Connector - 316 SS, 1/16 Tube x 1/8-27 MNPT
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Male Connector - 316 SS, 1/16 Tube x 1/8-27 MNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid system with the Griplok Male Connector - a high-quality 316 SS connector featuring a 1/16-inch Tube Fitting connecting seamlessly to a 1/8-27 MNPT thread. Designed for durability and precision, this straight connector ensures secure connections in instrumentation applications. With dimensions meeting stringent industry standards, this Griplok connector guarantees reliability and performance.

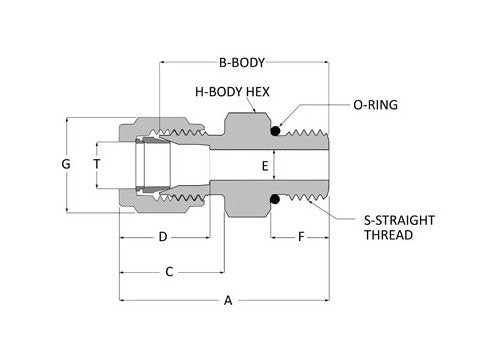

Product Specifications
Dimensions A
1.09 in
Dimensions B
0.88 in
Dimensions C
0.49 in
Dimensions D
0.40 in
Dimensions E
0.05 in
Dimensions F Minimum
0.38 in
Dimensions G
5/16 in
Dimensions H
7/16 in
Dimensions P
1/8 in
Dimensions T
1/16 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
