Griplok Male Connector - Alloy 400, 1/8 Tube x 1/16 MNPT
Griplok Male Connector - Alloy 400, 1/8 Tube x 1/16 MNPT
SKU:FIT-912d67
Secure your tubing connections efficiently with the Griplok Male Connector - Alloy 400, 1/8 Tube x 1/16 MNPT. Designed for precision and durability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Male Connector - Alloy 400, 1/8 Tube x 1/16 MNPT
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Male Connector - Alloy 400, 1/8 Tube x 1/16 MNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

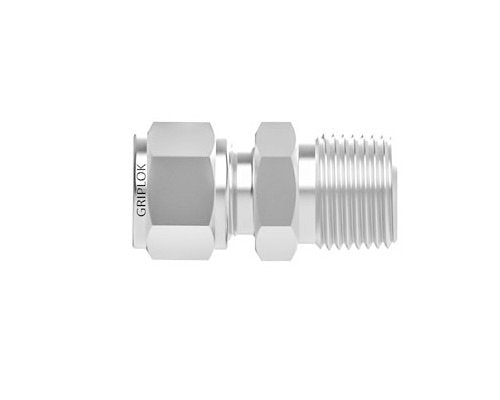

The Griplok Male Connector in Alloy 400 offers a reliable connection with a 1/8-inch Tube Fitting x 1/16 MNPT. This straight-shaped connector ensures a secure fit, measuring 1.23 inches in A, 0.66 inches in C, and 0.56 inches in D. With precision engineering meeting Griplok® Tube Fittings standards, this connector guarantees tight seals and efficient performance. Suitable for various applications requiring a durable and corrosion-resistant male connector.
Product Specifications

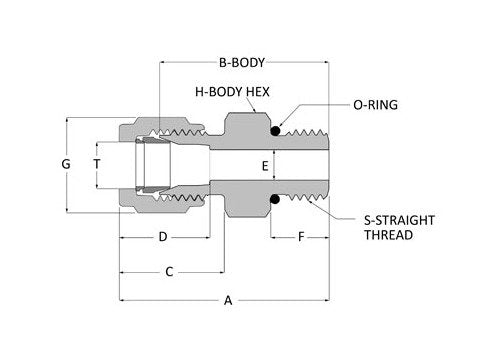

Dimensions A
1.23 in
Dimensions B
0.91 in
Dimensions C
0.66 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions F Minimum
0.38 in
Dimensions G
7/16 in
Dimensions H
7/16 in
Dimensions P
1/16 in
Dimensions T
1/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/16 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
