Griplok Male Connector - Alloy 400, 3/16 TF x 1/8 MNPT
Griplok Male Connector - Alloy 400, 3/16 TF x 1/8 MNPT
SKU:FIT-b74820
Premium Griplok Male Connector for precise instrumentation applications with Alloy 400 construction. Reliable and leak-free connection.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Griplok Male Connector - Alloy 400, 3/16 TF x 1/8 MNPT
$34.99
Quantity: 1
Claim Your Seller Account
Griplok Male Connector - Alloy 400, 3/16 TF x 1/8 MNPT
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

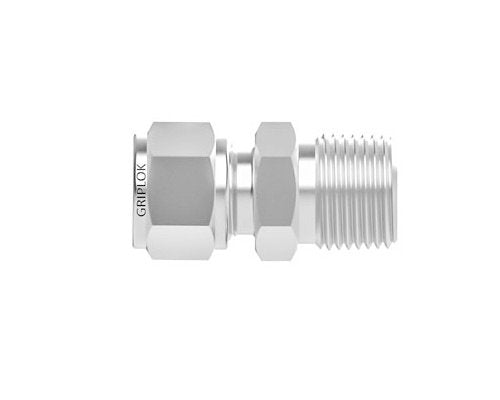

The Griplok Male Connector is a premium fitting designed for precise instrumentation applications. Constructed with Alloy 400, it ensures durability and resistance to corrosion. Featuring a 3/16-inch Tube Fitting on one end and a 1/8-27 MNPT thread on the other, this connector offers a secure and leak-free connection. Its straight shape and precise dimensions guarantee a perfect fit, while the Griplok brand series signifies reliability and quality. Trust this connector for seamless integration in critical systems.

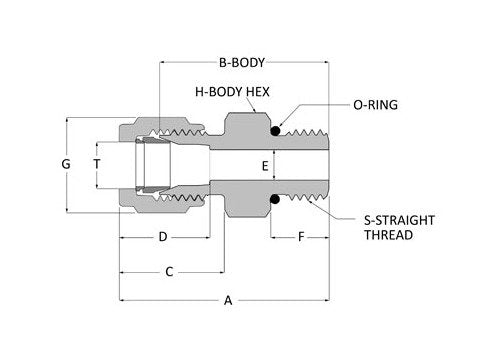

Product Specifications
Dimensions A
1.28 in
Dimensions B
0.97 in
Dimensions C
0.68 in
Dimensions D
0.59 in
Dimensions E
0.12 in
Dimensions F Minimum
0.38 in
Dimensions G
1/2 in
Dimensions H
7/16 in
Dimensions P
1/8 in
Dimensions T
3/16 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
