Griplok Male Connector - Brass 3/16 Tube x 1/8-27 MNPT
Griplok Male Connector - Brass 3/16 Tube x 1/8-27 MNPT
SKU:FIT-240291
High-quality brass male connector for 3/16 tube x 1/8-27 MNPT fittings. Reliable and durable choice for instrumentation needs.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Griplok Male Connector - Brass 3/16 Tube x 1/8-27 MNPT
$15.99
Quantity: 1
Claim Your Seller Account
Griplok Male Connector - Brass 3/16 Tube x 1/8-27 MNPT
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Male Connector in brass combines precision engineering and durability. This straight connector features a 3/16-inch tube fitting on one end and a 1/8-27 MNPT on the other, ensuring a secure and leak-free connection. With dimensions meeting industry standards, this connector is ideal for various instrumentation applications.
Product Specifications

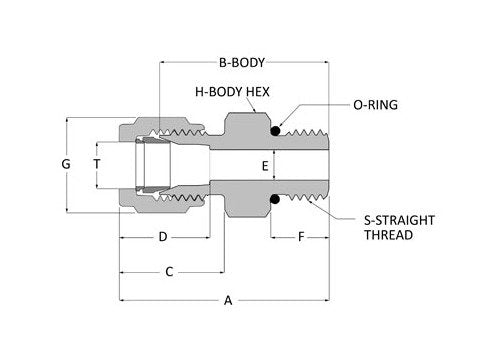

Dimensions A
1.28 in
Dimensions B
0.97 in
Dimensions C
0.68 in
Dimensions D
0.59 in
Dimensions E
0.12 in
Dimensions F Minimum
0.38 in
Dimensions G
1/2 in
Dimensions H
7/16 in
Dimensions P
1/8 in
Dimensions T
3/16 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
