Griplok Male Connector SAE 1/8 Tube x 5/16-24 Male SAE 316 SS
Griplok Male Connector SAE 1/8 Tube x 5/16-24 Male SAE 316 SS
SKU:FIT-db946b
High-quality 316 SS male connector fitting for secure tube connections. Trust Griplok for precision and durability.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Griplok Male Connector SAE 1/8 Tube x 5/16-24 Male SAE 316 SS
$25.99
Quantity: 1
Claim Your Seller Account
Griplok Male Connector SAE 1/8 Tube x 5/16-24 Male SAE 316 SS
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

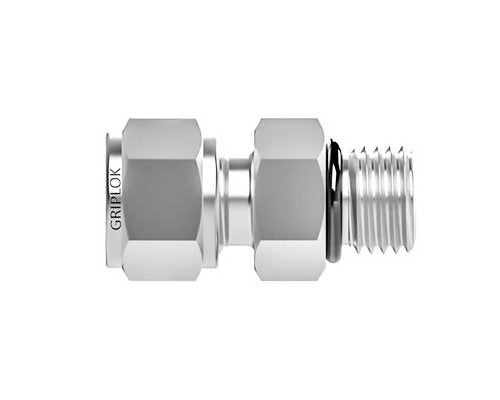

The Griplok Male Connector SAE Thread is a high-quality 316 stainless steel fitting designed for reliable tube connections. This straight connector features a 1/8-inch Tube Fitting on one end and a 5/16-24 Male SAE on the other end, ensuring a secure and leak-free fit. With precise dimensions and durable construction, this fitting is ideal for instrumentation applications where performance and longevity are crucial. Trust Griplok for superior quality and precision engineering.

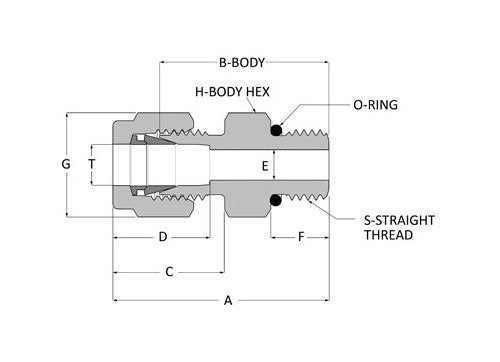

Product Specifications
Dimensions A
1.24 in
Dimensions B
0.92 in
Dimensions C
0.66 in
Dimensions E
0.09 in
Dimensions F
0.30 in
Dimensions G
7/16 in
Dimensions H
7/16 in
Dimensions S
5/16-24
Dimensions T
1/8 in
Specifications As568 O Ring Uniform Size Number
-902
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Male SAE
Specifications End Connections
TF x Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
