Griplok Male Connector SAE - 316 SS Tube Fitting
Griplok Male Connector SAE - 316 SS Tube Fitting
SKU:FIT-ea5c9d
Premium 316 SS Griplok Male Connector SAE fitting for precise instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Male Connector SAE - 316 SS Tube Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Male Connector SAE - 316 SS Tube Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

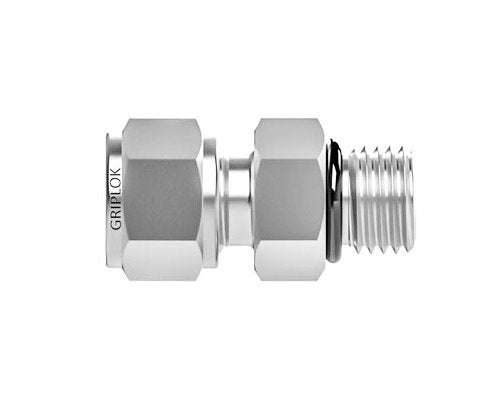

The Griplok Male Connector SAE Thread is crafted from high-grade 316 SS, ensuring durability and corrosion resistance. This fitting features a 1-inch Tube Fitting connection and a 1 1/16-12 Male SAE connection. Designed for precision and reliability, it offers a straight shape with AS568 O-Ring Uniform Size Number -916 for secure seals. With dimensions A: 2.22 in, C: 1.12 in, E: 0.88 in, and more, this fitting is ideal for instrumentation applications in demanding environments.

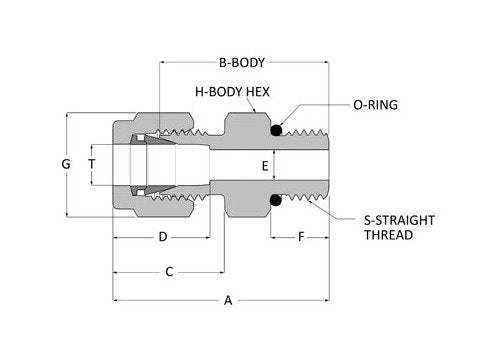

Product Specifications
Dimensions A
2.22 in
Dimensions B
1.66 in
Dimensions C
1.12 in
Dimensions E
0.88 in
Dimensions F
0.59 in
Dimensions G
1 1/2 in
Dimensions H
1 1/2 in
Dimensions S
1 5/16-12
Dimensions T
1 in
Specifications As568 O Ring Uniform Size Number
-916
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1 in
Specifications Connection 2 Type
Male SAE
Specifications End Connections
TF x Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to SAE Thread Fitting - Griplok
