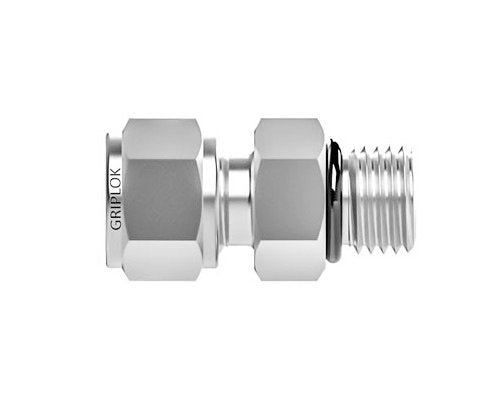

Griplok Male Connector SAE Thread - Alloy 400, 1/8 Tube x 5/16-24 Male SAE
Griplok Male Connector SAE Thread - Alloy 400, 1/8 Tube x 5/16-24 Male SAE
SKU:FIT-5c2247
Griplok Male Connector SAE Thread - Reliable Alloy 400 fitting for 1/8 Tube x 5/16-24 Male SAE. Trust Griplok for quality connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Male Connector SAE Thread - Alloy 400, 1/8 Tube x 5/16-24 Male SAE
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Male Connector SAE Thread - Alloy 400, 1/8 Tube x 5/16-24 Male SAE
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

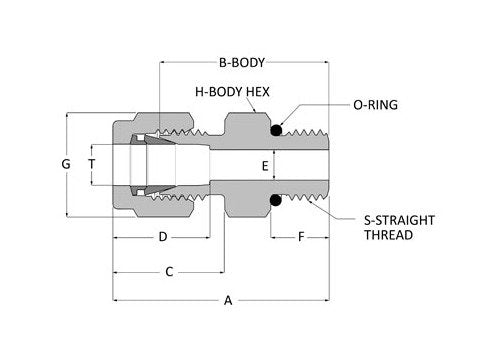

The Griplok Male Connector SAE Thread in Alloy 400 offers a reliable connection for tubing in instrumentation applications. With Connection 1 (Tube Fitting) sized at 1/8 inches and Connection 2 (Male SAE) at 5/16-24, this straight-shaped fitting ensures a secure link. The Griplok Brand Series guarantees quality, while the -902 AS568 O-Ring adds sealing efficiency. Measuring A: 1.24 in, B: 0.92 in, C: 0.66 in, E: 0.09 in, F: 0.30 in, G & H: 7/16 in, and T: 1/8 in, it meets precise dimensional standards.
Product Specifications
Dimensions A
1.24 in
Dimensions B
0.92 in
Dimensions C
0.66 in
Dimensions E
0.09 in
Dimensions F
0.30 in
Dimensions G
7/16 in
Dimensions H
7/16 in
Dimensions S
5/16-24
Dimensions T
1/8 in
Specifications As568 O Ring Uniform Size Number
-902
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Male SAE
Specifications End Connections
TF x Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Tube Fitting to SAE Thread Fitting - Griplok
