Griplok Male Pipe Weld Connector - 1/4 Tube x 1/8 Pipe, 316 SS
Griplok Male Pipe Weld Connector - 1/4 Tube x 1/8 Pipe, 316 SS
SKU:SSP-b513ce
High-strength Griplok Male Pipe Weld Connector - 316 SS, 1/4 Tube x 1/8 Pipe, compliant with federal standards.
Regular price
$11.22
Regular price
Sale price
$11.22
Unit price
per
Initiate Order
Griplok Male Pipe Weld Connector - 1/4 Tube x 1/8 Pipe, 316 SS
$11.22
Quantity: 1
Claim Your Seller Account
Griplok Male Pipe Weld Connector - 1/4 Tube x 1/8 Pipe, 316 SS
$11.22
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Male Pipe Weld Connector is crafted from high-grade 316 SS, ensuring exceptional strength and corrosion resistance. With a 1/4-inch Tube Fitting and 1/8-inch Pipe Stub, this connector guarantees a secure and leak-free connection. Its ergonomic design, compliant with federal standards, offers easy installation and maintenance, making it ideal for industrial applications requiring precision and durability.
Ready to Grow Without Cash Flow Constraints?

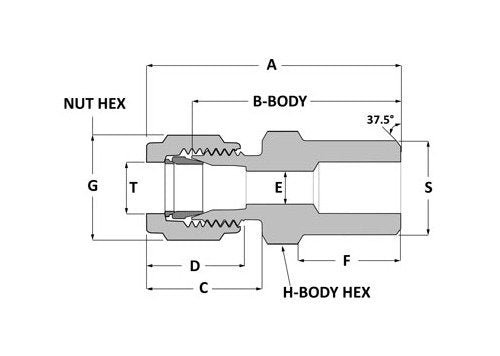

Product Specifications
Dimensions A
1.33 in
Dimensions B
1.00 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F
0.38 in
Dimensions G
9/16 in
Dimensions H
1/2 in
Dimensions Pipe Od
0.405 in
Dimensions S
0.41 in
Dimensions T
1/4 in
Dimensions Tube Id
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
11.22 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
