Griplok Male Pipe Weld Connector - 3/4 Tube Fitting x 3/4 Pipe Stub, 316 SS
Griplok Male Pipe Weld Connector - 3/4 Tube Fitting x 3/4 Pipe Stub, 316 SS
SKU:SSP-8785e5
High-quality Griplok Male Pipe Weld Connector, 3/4 Tube Fitting x 3/4 Pipe Stub, 316 SS. Secure, precise, and durable.
Regular price
$39.57
Regular price
Sale price
$39.57
Unit price
per
Initiate Order
Griplok Male Pipe Weld Connector - 3/4 Tube Fitting x 3/4 Pipe Stub, 316 SS
$39.57
Quantity: 1
Claim Your Seller Account
Griplok Male Pipe Weld Connector - 3/4 Tube Fitting x 3/4 Pipe Stub, 316 SS
$39.57
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

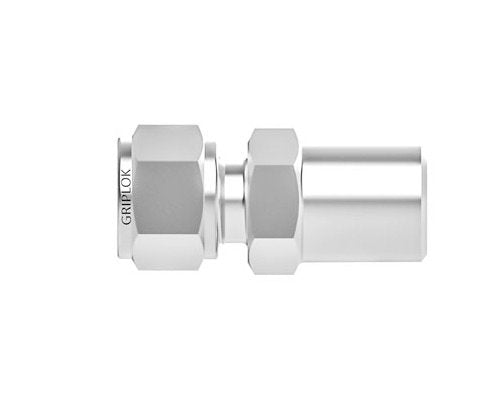

The Griplok Male Pipe Weld Connector is expertly designed for seamless integration in instrumentation applications. Crafted from high-quality 316 SS material, this connector ensures durability and corrosion resistance. With a precision-fit of 3/4 inch on both ends - tubing and pipe stub, it guarantees secure connections. Its straight shape and compact dimensions make it versatile for a wide range of setups. Trust Griplok for reliability and performance that exceeds industry standards.

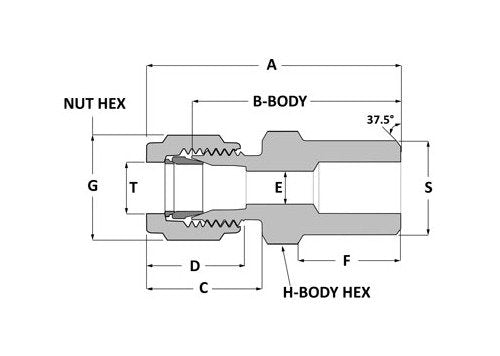

Product Specifications
Dimensions A
2.03 in
Dimensions B
1.59 in
Dimensions C
0.90 in
Dimensions D
1.00 in
Dimensions E
0.62 in
Dimensions F
0.75 in
Dimensions G
1 1/8 in
Dimensions H
1 1/16 in
Dimensions Pipe Od
1.05 in
Dimensions S
1.050 in
Dimensions T
3/4 in
Dimensions Tube Id
3/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
39.57 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
