Griplok Male Pipe Weld Connector 316 SS 1/8 Tube x 1/8 Pipe Stub
Griplok Male Pipe Weld Connector 316 SS 1/8 Tube x 1/8 Pipe Stub
SKU:SSP-4ec193
Durable Griplok Male Pipe Weld Connector in 316 SS, 1/8 Tube x 1/8 Pipe Stub, for secure and precise installations.
Regular price
$12.97
Regular price
Sale price
$12.97
Unit price
per
Initiate Order
Griplok Male Pipe Weld Connector 316 SS 1/8 Tube x 1/8 Pipe Stub
$12.97
Quantity: 1
Claim Your Seller Account
Griplok Male Pipe Weld Connector 316 SS 1/8 Tube x 1/8 Pipe Stub
$12.97
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

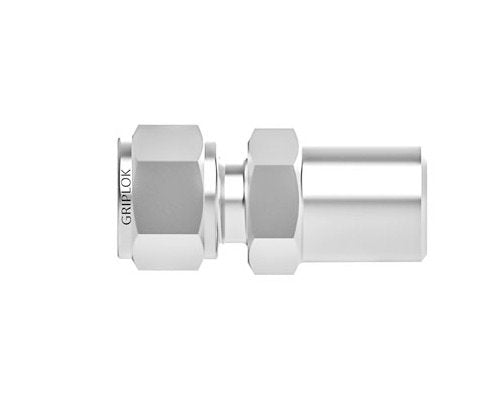

The Griplok Male Pipe Weld Connector is precision-engineered from high-quality 316 SS, ensuring durability and corrosion resistance. Designed for 1/8-inch tubing and pipe stub connections, this straight connector offers seamless installation and a secure fit. With dimensions meeting industry standards, this connector is ideal for various applications requiring reliable tube fittings.

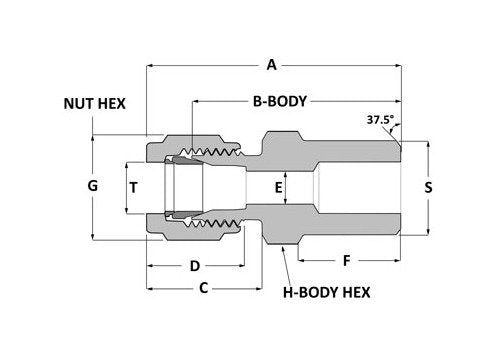

Product Specifications
Dimensions A
1.26 in
Dimensions B
0.94 in
Dimensions C
0.66 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions F
0.38 in
Dimensions G
7/16 in
Dimensions H
7/16 in
Dimensions Pipe Od
0.405 in
Dimensions S
0.41 in
Dimensions T
1/8 in
Dimensions Tube Id
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
12.97 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
