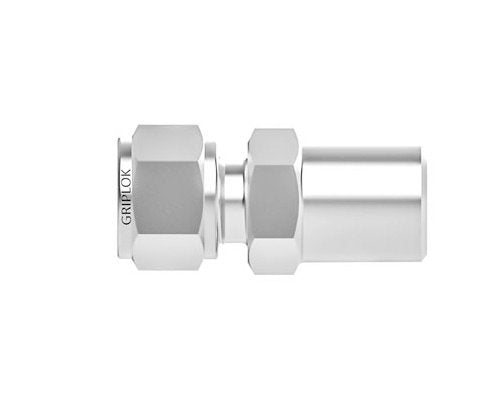

Griplok Male Pipe Weld Connector - 316 SS, 1" Tube Fitting x 1" Pipe Stub
Griplok Male Pipe Weld Connector - 316 SS, 1" Tube Fitting x 1" Pipe Stub
SKU:SSP-7d1979
High-quality Griplok Male Pipe Weld Connector - 316 SS, 1" Tube Fitting x 1" Pipe Stub for secure and reliable installations.
Regular price
$76.72
Regular price
Sale price
$76.72
Unit price
per
Initiate Order
Griplok Male Pipe Weld Connector - 316 SS, 1" Tube Fitting x 1" Pipe Stub
$76.72
Quantity: 1
Claim Your Seller Account
Griplok Male Pipe Weld Connector - 316 SS, 1" Tube Fitting x 1" Pipe Stub
$76.72
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Male Pipe Weld Connector is crafted from high-quality 316 stainless steel, ensuring durability and corrosion resistance. This connector features a straight shape with a 1-inch tube fitting and 1-inch pipe stub, ideal for secure installations. With precise dimensions and sturdy construction, this connector guarantees a reliable connection in a variety of applications, meeting the stringent standards of instrument tube fittings. Trust the Griplok series for superior performance and longevity.
Ready to Grow Without Cash Flow Constraints?

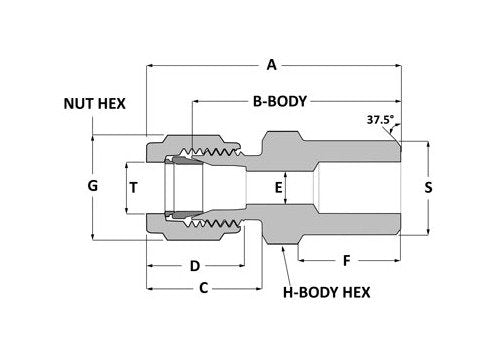

Product Specifications
Dimensions A
2.53 in
Dimensions B
1.97 in
Dimensions C
1.12 in
Dimensions D
1.31 in
Dimensions E
0.86 in
Dimensions F
0.94 in
Dimensions G
1 1/2 in
Dimensions H
1 3/8 in
Dimensions Pipe Od
1.315 in
Dimensions S
1.31 in
Dimensions T
1 in
Dimensions Tube Id
1 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
76.72 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
