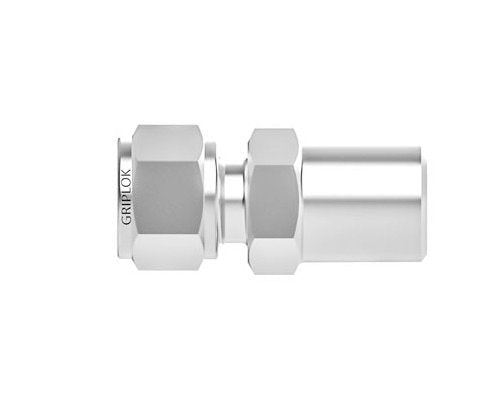

Griplok Male Pipe Weld Connector - Alloy 400, 1/8 Tube x 1/8 Pipe Stub
Griplok Male Pipe Weld Connector - Alloy 400, 1/8 Tube x 1/8 Pipe Stub
SKU:SSP-d96973
Enhance connections with Griplok Male Pipe Weld Connector. Alloy 400, 1/8 Tube x 1/8 Pipe Stub for secure, efficient fittings.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Griplok Male Pipe Weld Connector - Alloy 400, 1/8 Tube x 1/8 Pipe Stub
$25.99
Quantity: 1
Claim Your Seller Account
Griplok Male Pipe Weld Connector - Alloy 400, 1/8 Tube x 1/8 Pipe Stub
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Male Pipe Weld Connector is a robust fitting designed for seamless connections in instrumentation applications. Crafted from durable Alloy 400, this connector ensures reliable performance. With a precise Tube Fitting-to-Pipe Stub connection design, it offers secure fitting and ease of installation. The straight shape and optimized dimensions deliver efficient flow and minimal pressure drop. Precision-engineered to meet industry standards, this Griplok Connector is a reliable choice for demanding environments.

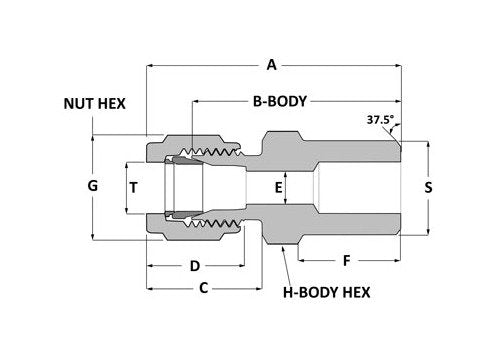

Product Specifications
Dimensions A
1.26 in
Dimensions B
0.94 in
Dimensions C
0.66 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions F
0.38 in
Dimensions G
7/16 in
Dimensions H
7/16 in
Dimensions Pipe Od
0.405 in
Dimensions S
0.41 in
Dimensions T
1/8 in
Dimensions Tube Id
1/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
