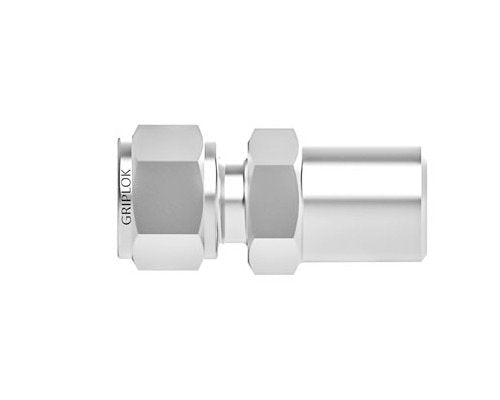

The Griplok Male Pipe Weld Connector in Alloy 400 offers a secure and reliable connection between a 3/4-inch tube fitting and a 3/4-inch pipe stub. Designed with precision, it ensures a straight, leak-free connection, meeting the demands of industrial applications. With dimensions A: 2.03 in, C: 0.90 in, D: 1.00 in, E: 0.62 in, F: 0.75 in, this connector guarantees optimal performance and durability.

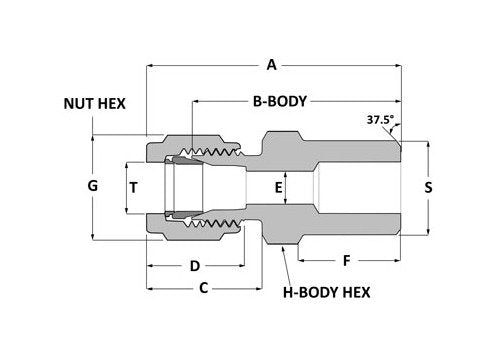

Product Specifications
Dimensions A
2.03 in
Dimensions B
1.59 in
Dimensions C
0.90 in
Dimensions D
1.00 in
Dimensions E
0.62 in
Dimensions F
0.75 in
Dimensions G
1 1/8 in
Dimensions H
1 1/16 in
Dimensions Pipe Od
1.05 in
Dimensions S
1.050 in
Dimensions T
3/4 in
Dimensions Tube Id
3/4 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
