Griplok Male Pipe Weld Elbow - 3/8 Tube x 1/4 Pipe Stub, Alloy 400
Griplok Male Pipe Weld Elbow - 3/8 Tube x 1/4 Pipe Stub, Alloy 400
SKU:SSP-4a90d7
High-quality Griplok Male Pipe Weld Elbow for secure tube-to-pipe connections. Alloy 400, 3/8 Tube x 1/4 Pipe Stub.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Male Pipe Weld Elbow - 3/8 Tube x 1/4 Pipe Stub, Alloy 400
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Male Pipe Weld Elbow - 3/8 Tube x 1/4 Pipe Stub, Alloy 400
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Male Pipe Weld Elbow offers seamless tube-to-pipe connection with precision and durability. Crafted from high-grade Alloy 400, this fitting ensures reliable performance in demanding environments. Its 3/8-inch tube fitting and 1/4-inch pipe stub guarantee a secure and leak-free assembly. The Griplok series combines efficiency and quality, making it an ideal choice for industrial applications.
Ready to Grow Without Cash Flow Constraints?

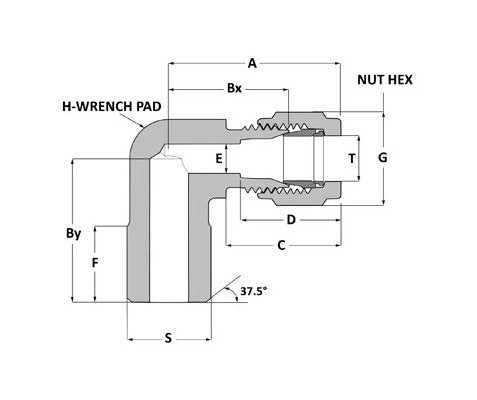

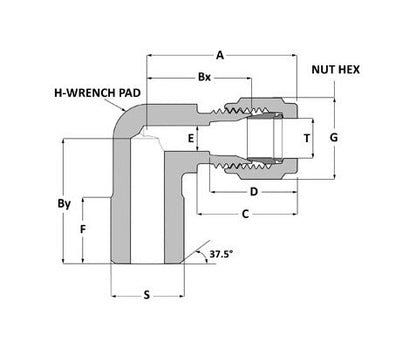

Product Specifications
Dimensions A
1.25 in
Dimensions Bx
0.91 in
Dimensions By
1.00 in
Dimensions C
0.81 in
Dimensions D
0.71 in
Dimensions E
0.28 in
Dimensions F
0.56 in
Dimensions G
11/16 in
Dimensions H
5/8 in
Dimensions S
0.54 in
Dimensions T
3/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Elbow
Category 6
Griplok® Tube Fittings
