Griplok Male Pipe Weld Elbow - 316 SS, 1/4 Tube x 1/4 Pipe Stub
Griplok Male Pipe Weld Elbow - 316 SS, 1/4 Tube x 1/4 Pipe Stub
SKU:SSP-ec80ae
High-grade 316 SS Male Pipe Weld Elbow for 1/4 Tube x 1/4 Pipe Stub connection, ideal for secure instrumentation fittings.
Regular price
$23.63
Regular price
Sale price
$23.63
Unit price
per
Initiate Order
Griplok Male Pipe Weld Elbow - 316 SS, 1/4 Tube x 1/4 Pipe Stub
$23.63
Quantity: 1
Claim Your Seller Account
Griplok Male Pipe Weld Elbow - 316 SS, 1/4 Tube x 1/4 Pipe Stub
$23.63
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

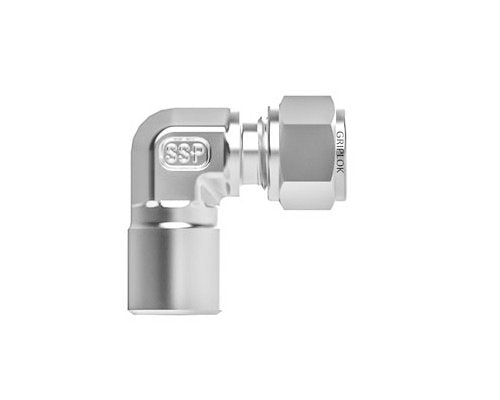

The Griplok Male Pipe Weld Elbow, made from high-quality 316 SS, features a precise 1/4 inch Tube Fitting x 1/4 inch Pipe Stub connection. Designed for durability and performance, this elbow ensures a secure and reliable fit for instrumentation applications. Its compact dimensions and ergonomic design further enhance ease of installation and maintenance.

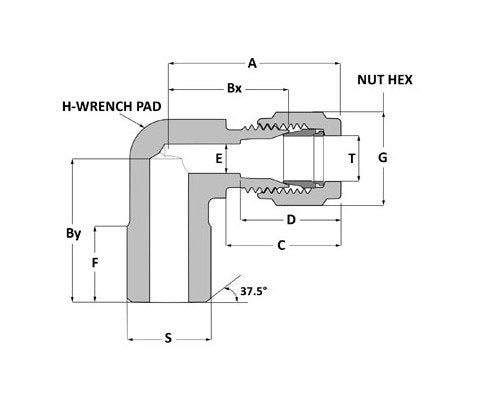

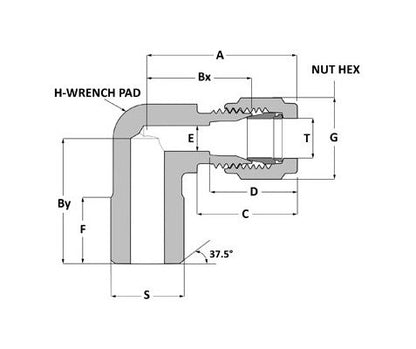

Product Specifications
Dimensions A
1.10 in
Dimensions Bx
0.77 in
Dimensions By
0.92 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F
0.56 in
Dimensions G
9/16 in
Dimensions H
1/2 in
Dimensions S
0.54 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
23.63 USD
Specifications Production Category
1
Specifications Shape
Elbow
Category 6
Griplok® Tube Fittings
