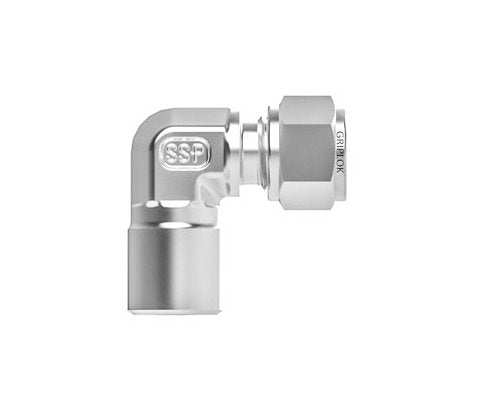

Griplok Male Pipe Weld Elbow - 316 SS, 3/4" TF x Pipe Stub
Griplok Male Pipe Weld Elbow - 316 SS, 3/4" TF x Pipe Stub
SKU:SSP-4d94d3
High-quality 316 SS Griplok Male Pipe Weld Elbow for secure 3/4" TF x Pipe Stub connections.
Regular price
$58.22
Regular price
Sale price
$58.22
Unit price
per
Initiate Order
Griplok Male Pipe Weld Elbow - 316 SS, 3/4" TF x Pipe Stub
$58.22
Quantity: 1
Claim Your Seller Account
Griplok Male Pipe Weld Elbow - 316 SS, 3/4" TF x Pipe Stub
$58.22
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Male Pipe Weld Elbow is constructed from high-grade 316 SS, ensuring superior corrosion resistance and durability. With a precise 3/4 inch Tube Fitting x 3/4 inch Pipe Stub connection, this elbow offers a secure and leak-free join. Its ergonomic design and compact dimensions make it ideal for instrumentation applications. The Griplok series guarantees a tight and reliable fit, meeting the stringent requirements of industrial and institutional setups.

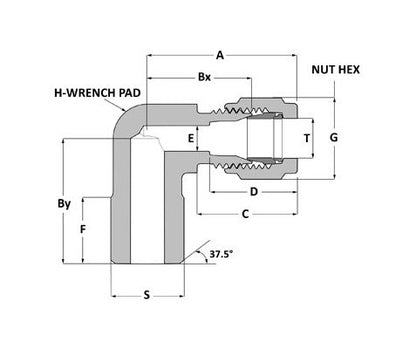

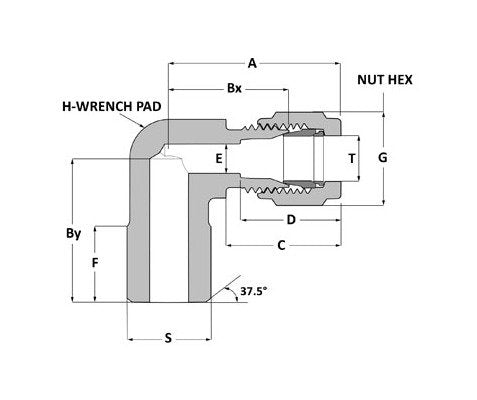

Product Specifications
Dimensions A
1.61 in
Dimensions Bx
1.17 in
Dimensions By
1.45 in
Dimensions C
0.90 in
Dimensions D
1.00 in
Dimensions E
0.62 in
Dimensions F
0.75 in
Dimensions G
1 1/8 in
Dimensions H
1 1/16 in
Dimensions S
1.050 in
Dimensions T
3/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
58.22 USD
Specifications Production Category
1
Specifications Shape
Elbow
Category 6
Griplok® Tube Fittings
