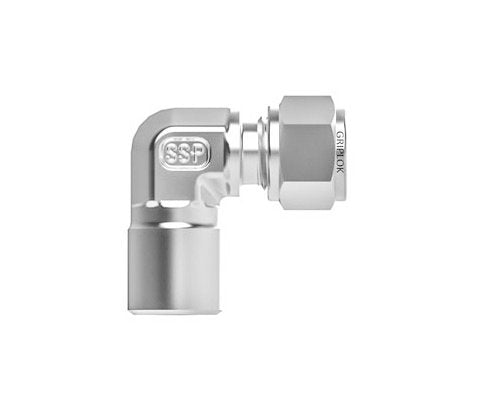

Griplok Male Pipe Weld Elbow - Alloy 400, 1/4in Tube x 1/8in Pipe Stub
Griplok Male Pipe Weld Elbow - Alloy 400, 1/4in Tube x 1/8in Pipe Stub
SKU:SSP-3bab05
Precision-engineered Griplok Male Pipe Weld Elbow - Alloy 400 for leak-free performance in high-pressure industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Male Pipe Weld Elbow - Alloy 400, 1/4in Tube x 1/8in Pipe Stub
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Male Pipe Weld Elbow - Alloy 400, 1/4in Tube x 1/8in Pipe Stub
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Male Pipe Weld Elbow in Alloy 400 is a precision-engineered tube fitting ideal for high-pressure applications in industrial settings. With a 1/4-inch tube fitting and 1/8-inch pipe stub, this elbow offers exceptional durability and leak-free performance. Its compact design features precise dimensions, including A: 1.10in, Bx: 0.77in, By: 0.74in, C: 0.74in, ensuring seamless integration into instrumentation systems. Trust the Griplok brand for reliable connections and superior corrosion resistance.
Ready to Grow Without Cash Flow Constraints?

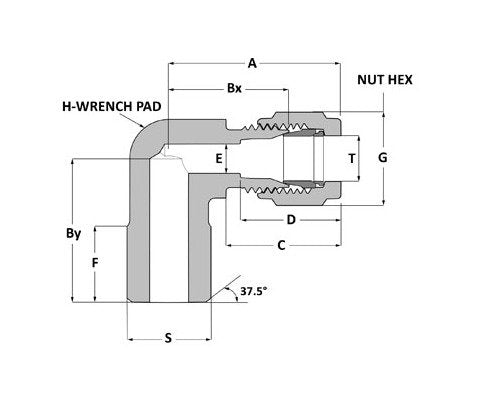

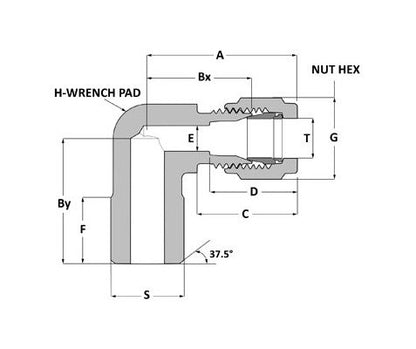

Product Specifications
Dimensions A
1.10 in
Dimensions Bx
0.77 in
Dimensions By
0.74 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F
0.38 in
Dimensions G
9/16 in
Dimensions H
1/2 in
Dimensions S
0.41 in
Dimensions T
1/4 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Elbow
Category 6
Griplok® Tube Fittings
