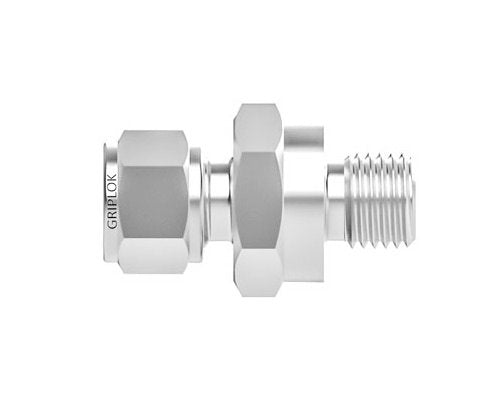

Griplok O-Ring Seal Connector - 3/16 Straight Thread, 316 SS
Griplok O-Ring Seal Connector - 3/16 Straight Thread, 316 SS
SKU:SSP-60daa2
Premium 316 SS Griplok O-Ring Seal Connector - Leak-free, Easy Install
Regular price
$20.00
Regular price
Sale price
$20.00
Unit price
per
Initiate Order
Griplok O-Ring Seal Connector - 3/16 Straight Thread, 316 SS
$20.00
Quantity: 1
Claim Your Seller Account
Griplok O-Ring Seal Connector - 3/16 Straight Thread, 316 SS
$20.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok O-Ring Seal Connector features a 3/16 tube fitting x 3/16 O-ring sealed straight thread design crafted from high-grade 316 SS material. With precise dimensions and a unique -012 AS568 O-ring uniform size number, this connector ensures a secure and leak-free connection. Ideal for instrumentation applications, the Griplok series offers durability, reliability, and easy installation, meeting stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions A
1.40 in
Dimensions B
1.09 in
Dimensions C
0.68 in
Dimensions D
0.59 in
Dimensions E
0.12 in
Dimensions F
0.38 in
Dimensions G
1/2 in
Dimensions H
5/8 in
Dimensions Hd
0.62 in
Dimensions S
3/8-24
Dimensions T
3/16 in
Specifications As568 O Ring Uniform Size Number
-012
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/16 in
Specifications Connection 2 Type
O-ring Sealed Straight Thread
Specifications End Connections
TF x O-ring Sealed Straight Thread
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
20 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
