Griplok O-Ring Seal Male Connector
Griplok O-Ring Seal Male Connector
SKU:SSP-c8c50d
High-quality Griplok O-Ring Seal Male Connector for secure and leak-free tube connections in industrial settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok O-Ring Seal Male Connector
$29.99
Quantity: 1
Claim Your Seller Account
Griplok O-Ring Seal Male Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok O-Ring Seal Male Connector is a high-quality tube fitting designed for precision and durability. Crafted from Alloy 400, it ensures superior corrosion resistance and long-lasting performance. This connector features a 3/8-inch Griplok Tube Fitting on one end and a 1/4-inch O-ring Seal Modified MNPT on the other, providing a secure and leak-free connection. With precise dimensions and a straight shape, it offers easy installation and reliable operation in industrial applications.
Ready to Grow Without Cash Flow Constraints?

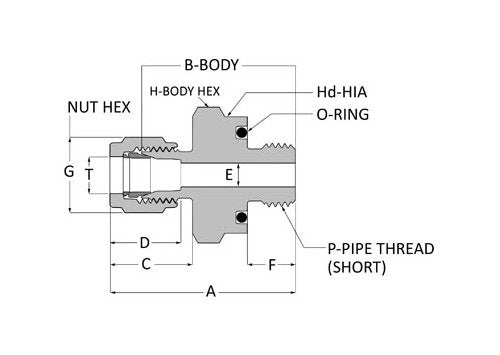

Product Specifications
Dimensions A
1.62 in
Dimensions B
1.28 in
Dimensions C
0.81 in
Dimensions D
0.71 in
Dimensions E
0.28 in
Dimensions F
0.38 in
Dimensions G
11/16 in
Dimensions H
15/16 in
Dimensions Hd
0.93 in
Dimensions P
1/4 in
Dimensions T
3/8 in
Specifications As568 O Ring Uniform Size Number
-113
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Griplok Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
O-ring Seal Modified MNPT
Specifications End Connections
TF x O-ring Seal Modified MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
