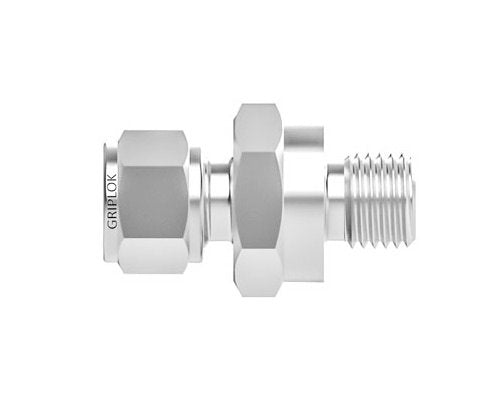

Griplok O-Ring Seal Straight Thread Connector - 1/4 Tube Fitting x 1/4 O-ring Sealed Straight Thread
Griplok O-Ring Seal Straight Thread Connector - 1/4 Tube Fitting x 1/4 O-ring Sealed Straight Thread
SKU:SSP-118655
High-quality Griplok O-Ring Seal Connector, 316 SS, 1/4" Tube Fitting x 1/4" O-ring Sealed Thread, AS568 O-Ring -111, ideal for instrumentation.
Regular price
$20.27
Regular price
Sale price
$20.27
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Griplok O-Ring Seal Straight Thread Connector features a durable 316 SS construction, ensuring reliable performance in demanding environments. With a precise 1/4-inch tube fitting and O-ring sealed straight thread connections, this connector guarantees a secure and leak-free interface. Its AS568 O-Ring Uniform Size Number -111 enhances sealing efficiency, while the straight shape and compact dimensions make it ideal for instrumentation applications. Trust Griplok for superior quality and precision engineering.
Product Specifications
Dimensions A
1.55 in
Dimensions B
1.22 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F
0.41 in
Dimensions G
9/16 in
Dimensions H
3/4 in
Dimensions Hd
0.74 in
Dimensions S
7/16-20
Dimensions T
1/4 in
Specifications As568 O Ring Uniform Size Number
-111
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
O-ring Sealed Straight Thread
Specifications End Connections
TF x O-ring Sealed Straight Thread
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
20.27 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
