Griplok O-Ring Seal Straight Thread Connector - Brass, 1/4 in
Griplok O-Ring Seal Straight Thread Connector - Brass, 1/4 in
SKU:SSP-0f4016
Premium brass O-Ring Seal Straight Thread Connector for secure and leak-free connections. Ideal for 1/4 in Tube Fittings.
Regular price
$8.57
Regular price
Sale price
$8.57
Unit price
per
Initiate Order
Griplok O-Ring Seal Straight Thread Connector - Brass, 1/4 in
$8.57
Quantity: 1
Claim Your Seller Account
Griplok O-Ring Seal Straight Thread Connector - Brass, 1/4 in
$8.57
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok O-Ring Seal Straight Thread Connector is expertly crafted from durable brass, ensuring reliable performance and longevity. Designed for a precise fit, this connector features a 1/4-inch Tube Fitting and O-ring Sealed Straight Thread connection, guaranteeing leak-free operation. With dimensions meeting industry standards, this connector offers superior quality for various applications.

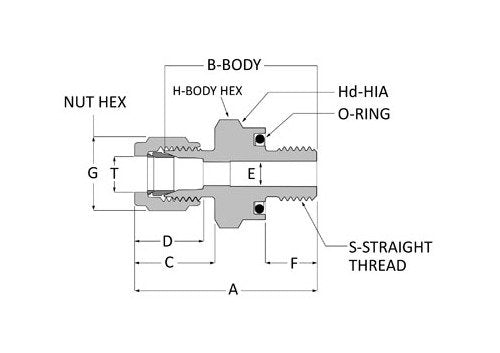

Product Specifications
Dimensions A
1.55 in
Dimensions B
1.22 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F
0.41 in
Dimensions G
9/16 in
Dimensions H
3/4 in
Dimensions Hd
0.74 in
Dimensions S
7/16-20
Dimensions T
1/4 in
Specifications As568 O Ring Uniform Size Number
-111
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
O-ring Sealed Straight Thread
Specifications End Connections
TF x O-ring Sealed Straight Thread
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
8.57 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
