Griplok Positionable Male Branch Tee SAE - 316 SS
Griplok Positionable Male Branch Tee SAE - 316 SS
SKU:SSP-388148
Premium Griplok Male Branch Tee SAE - 316 SS, 1/4 Tube Fitting x 1/4 Tube Fitting x 9/16-18 Male SAE, for durable and secure connections.
Regular price
$59.16
Regular price
Sale price
$59.16
Unit price
per
Initiate Order
Griplok Positionable Male Branch Tee SAE - 316 SS
$59.16
Quantity: 1
Claim Your Seller Account
Griplok Positionable Male Branch Tee SAE - 316 SS
$59.16
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

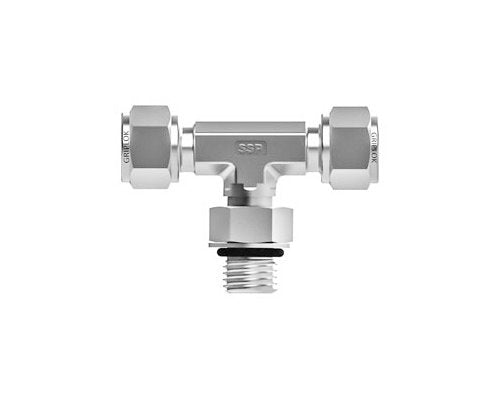

The Griplok Positionable Male Branch Tee SAE is a premium tube fitting made of high-quality 316 SS for exceptional durability and corrosion resistance. With precise 1/4-inch tube fittings on both connections and a 9/16-18 Male SAE fitting, this tee combines versatility with reliability. Its shape allows for easy installation and repositioning while ensuring a secure seal, making it ideal for various instrumentation applications. Trust in the Griplok series for top-notch performance and longevity.
Ready to Grow Without Cash Flow Constraints?

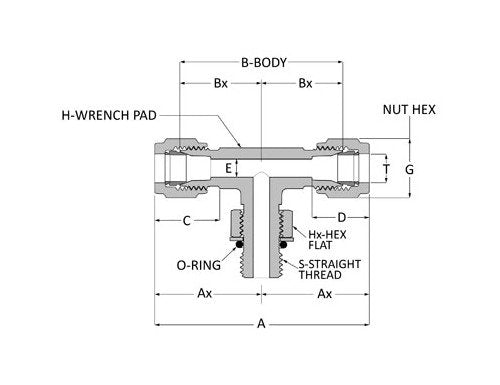

Product Specifications
Dimensions A
2.24 in
Dimensions Ax
1.12 in
Dimensions B
1.66 in
Dimensions Bx
0.83 in
Dimensions C
0.70 in
Dimensions D
0.60 in
Dimensions E
0.19 in
Dimensions G
9/16 in
Dimensions H
1/2 in
Dimensions Hx
9/16 in
Dimensions S
7/16-20
Dimensions T
1/4 in
Specifications As568 O Ring Uniform Size Number
-904
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Tube Fitting
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Male SAE
Specifications End Connections
TF x TF x Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
59.16 USD
Specifications Production Category
1
Specifications Shape
Tee
Category 6
Griplok® Tube Fittings
