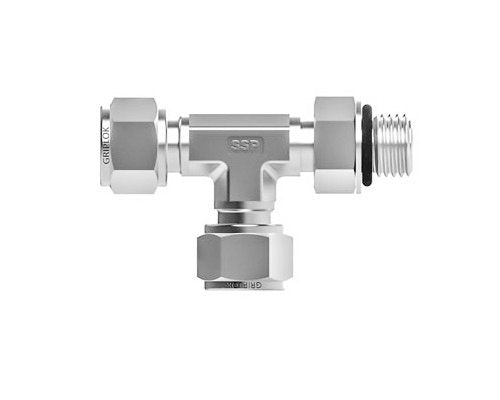

Griplok Positionable Male Run Tee SAE - 316 SS
Griplok Positionable Male Run Tee SAE - 316 SS
SKU:SSP-6bb54f
Reliable Griplok Positionable Male Run Tee in 316 SS, perfect for instrument tubing. Secure connections & precise positioning.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Griplok Positionable Male Run Tee SAE - 316 SS
$25.99
Quantity: 1
Claim Your Seller Account
Griplok Positionable Male Run Tee SAE - 316 SS
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Positionable Male Run Tee features a durable construction of 316 SS, ensuring reliability and longevity. With 3/8 in Tube Fitting, 9/16-18 Male SAE, and Griplok design, it offers secure connections and precise positioning. This Tee fitting conforms to industry standards, making it ideal for instrument tubing applications.
Product Specifications

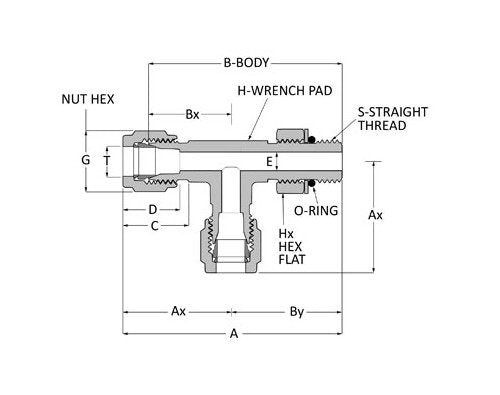

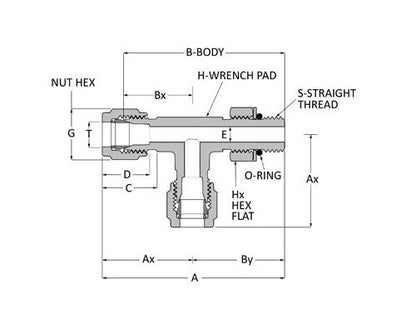

Dimensions A
2.53 in
Dimensions Ax
1.26 in
Dimensions B
2.24 in
Dimensions Bx
0.97 in
Dimensions By
1.27 in
Dimensions C
0.76 in
Dimensions D
0.66 in
Dimensions E
0.28 in
Dimensions G
11/16 in
Dimensions H
5/8 in
Dimensions Hx
11/16 in
Dimensions S
9/16-18
Dimensions T
3/8 in
Specifications As568 O Ring Uniform Size Number
-906
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
Male SAE
Specifications Connection 3 Size
3/8 in
Specifications Connection 3 Type
Tube Fitting
Specifications End Connections
TF x Male SAE x Tube Fitting
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
3
Specifications Shape
Tee
Category 6
Griplok® Tube Fittings
