Griplok Positionable Male Run Tee SAE - Brass Fitting
Griplok Positionable Male Run Tee SAE - Brass Fitting
SKU:SSP-554005
Durable Griplok Positionable Male Run Tee SAE brass fitting for 3/8 in tubes, designed for precise fluid system connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Positionable Male Run Tee SAE - Brass Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Positionable Male Run Tee SAE - Brass Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial fluid systems with the Griplok Positionable Male Run Tee. Crafted from durable brass, this Tee features 3/8 in tube fittings for a secure connection. The Tee is designed with precision to ensure compatibility with 9/16-18 Male SAE fittings. Its unique shape and dimensions make it versatile and easy to install, meeting high industry standards for performance and reliability.

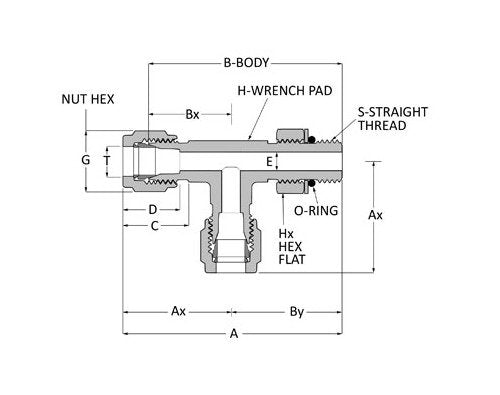

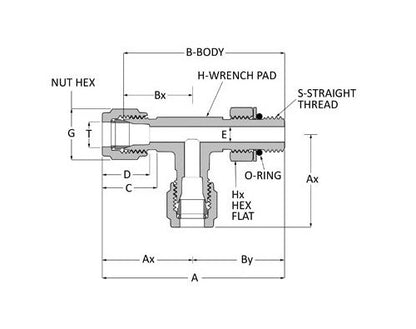

Product Specifications
Dimensions A
2.53 in
Dimensions Ax
1.26 in
Dimensions B
2.24 in
Dimensions Bx
0.97 in
Dimensions By
1.27 in
Dimensions C
0.76 in
Dimensions D
0.66 in
Dimensions E
0.28 in
Dimensions G
11/16 in
Dimensions H
5/8 in
Dimensions Hx
11/16 in
Dimensions S
9/16-18
Dimensions T
3/8 in
Specifications As568 O Ring Uniform Size Number
-906
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
Male SAE
Specifications Connection 3 Size
3/8 in
Specifications Connection 3 Type
Tube Fitting
Specifications End Connections
TF x Male SAE x Tube Fitting
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Tee
Category 6
Griplok® Tube Fittings
