Griplok Positionable Male Run Tee SAE - Brass Fitting
Griplok Positionable Male Run Tee SAE - Brass Fitting
SKU:SSP-a48d1d
Premium Griplok Positionable Male Run Tee SAE for reliable instrumentation tube connections.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Griplok Positionable Male Run Tee SAE - Brass Fitting
$49.99
Quantity: 1
Claim Your Seller Account
Griplok Positionable Male Run Tee SAE - Brass Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Positionable Male Run Tee SAE in Brass offers exceptional performance in instrumentation applications. Constructed with high-quality brass, this positionable tee fitting ensures a secure connection. With precise dimensions and AS568 O-Ring compatibility, it provides a reliable interface between components. The Griplok series guarantees ease of installation and maintenance, making it a top choice for industrial settings.
Product Specifications

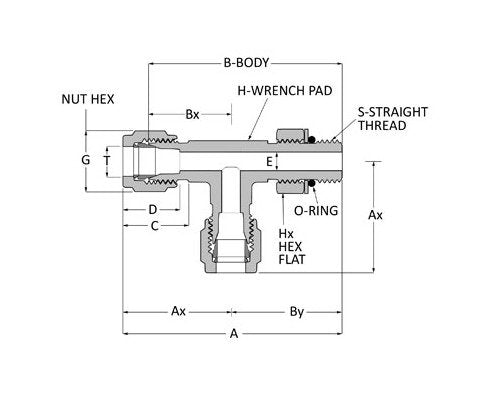

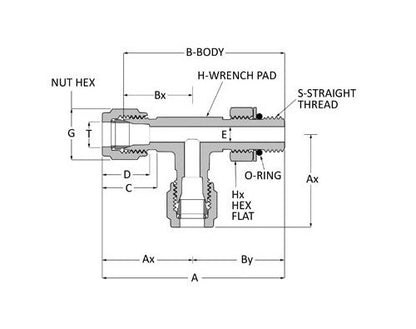

Dimensions A
4.10 in
Dimensions Ax
1.99 in
Dimensions B
3.62 in
Dimensions Bx
1.51 in
Dimensions By
2.11 in
Dimensions C
1.04 in
Dimensions D
1.23 in
Dimensions E
0.88 in
Dimensions G
1 1/2 in
Dimensions H
1 3/8 in
Dimensions Hx
1 1/2 in
Dimensions S
1 5/16-12
Dimensions T
1 in
Specifications As568 O Ring Uniform Size Number
-916
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1 in
Specifications Connection 2 Type
Male SAE
Specifications Connection 3 Size
1 in
Specifications Connection 3 Type
Tube Fitting
Specifications End Connections
TF x Male SAE x Tube Fitting
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Tee
Category 6
Griplok® Tube Fittings
