Griplok Positionable Male Run Tee SAE Fitting 1/4 x 7/16-20 Brass
Griplok Positionable Male Run Tee SAE Fitting 1/4 x 7/16-20 Brass
SKU:SSP-661aaa
Enhance your fluid systems with Griplok Positionable Male Run Tee SAE Fitting for robust, leak-free connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Positionable Male Run Tee SAE Fitting 1/4 x 7/16-20 Brass
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Positionable Male Run Tee SAE Fitting 1/4 x 7/16-20 Brass
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

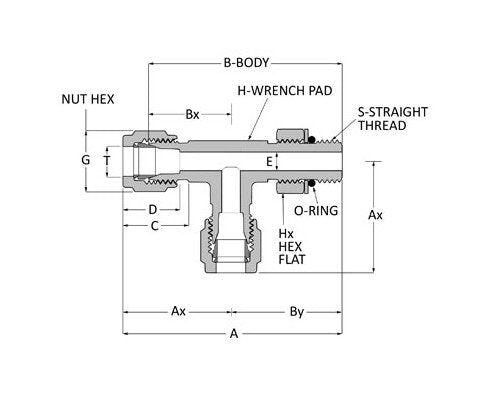

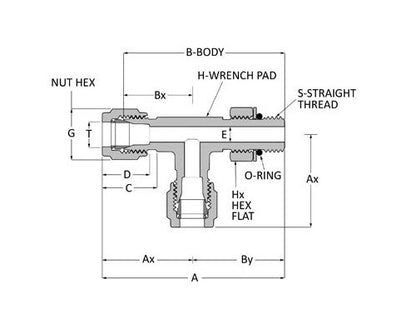

Upgrade your fluid systems with the Griplok Positionable Male Run Tee SAE Fitting. This brass tee fitting features 1/4-inch tube connections, a 7/16-20 male SAE connection, and a Tee shape for versatile installations. With precise dimensions of A: 2.24 in, B: 1.95 in, C: 0.70 in, and complying with industry standards, it ensures secure connections and efficient fluid transfer, perfect for demanding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions A
2.24 in
Dimensions Ax
1.12 in
Dimensions B
1.95 in
Dimensions Bx
0.83 in
Dimensions By
1.12 in
Dimensions C
0.70 in
Dimensions D
0.60 in
Dimensions E
0.19 in
Dimensions G
9/16 in
Dimensions H
1/2 in
Dimensions Hx
9/16 in
Dimensions S
7/16-20
Dimensions T
1/4 in
Specifications As568 O Ring Uniform Size Number
-904
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male SAE
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Tube Fitting
Specifications End Connections
TF x Male SAE x Tube Fitting
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Tee
Category 6
Griplok® Tube Fittings
