Griplok Stainless Steel Male Connector - 1/16 Tube x 1/4-18 MNPT
Griplok Stainless Steel Male Connector - 1/16 Tube x 1/4-18 MNPT
SKU:FIT-ed201c
High-quality Griplok Male Connector: 316 SS, 1/16 Tube x 1/4-18 MNPT, precise dimensions for secure connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Stainless Steel Male Connector - 1/16 Tube x 1/4-18 MNPT
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Stainless Steel Male Connector - 1/16 Tube x 1/4-18 MNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

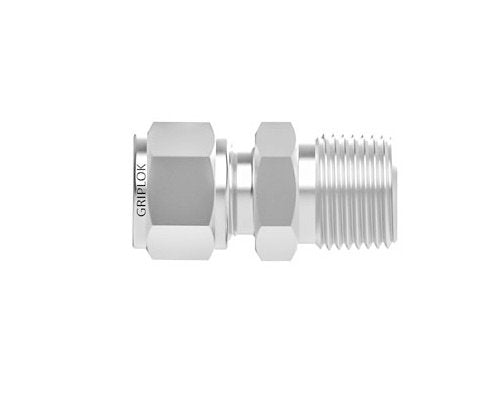

The Griplok Stainless Steel Male Connector features a durable 316 SS body with a 1/16-inch tube fitting on one end and a 1/4-18 MNPT thread fitting on the other. This straight-shaped connector ensures secure and leak-free connections, perfect for instrumentation applications. With precise dimensions meeting industry standards, this connector guarantees reliability and performance under pressure.

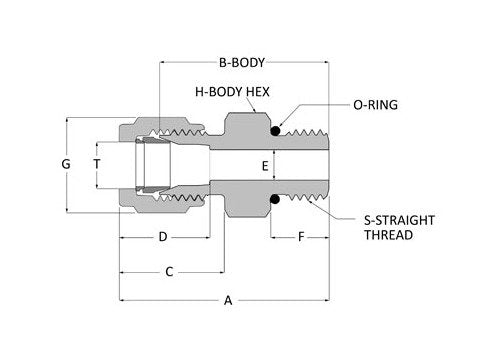

Product Specifications
Dimensions A
1.28 in
Dimensions B
1.07 in
Dimensions C
0.49 in
Dimensions D
0.40 in
Dimensions E
0.05 in
Dimensions F Minimum
0.56 in
Dimensions G
5/16 in
Dimensions H
9/16 in
Dimensions P
1/4 in
Dimensions T
1/16 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
