Griplok Tube Stub Adapter - 316 SS, 3/16 in Tube x 1/8 in Stub
Griplok Tube Stub Adapter - 316 SS, 3/16 in Tube x 1/8 in Stub
SKU:SSP-c532bd
Griplok Tube Stub Adapter - High-Quality 316 SS Fitting for Precise Tubing Connections
Regular price
$20.00
Regular price
Sale price
$20.00
Unit price
per
Initiate Order
Griplok Tube Stub Adapter - 316 SS, 3/16 in Tube x 1/8 in Stub
$20.00
Quantity: 1
Claim Your Seller Account
Griplok Tube Stub Adapter - 316 SS, 3/16 in Tube x 1/8 in Stub
$20.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

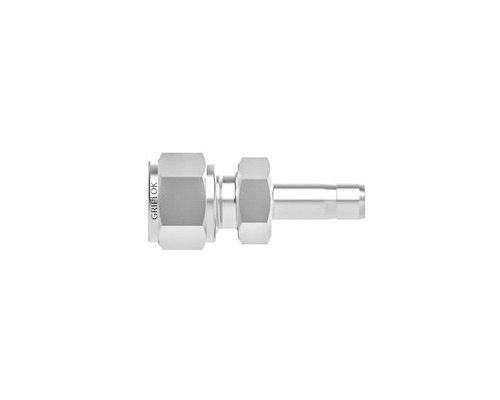

The Griplok Tube Stub Adapter is a high-quality 316 SS fitting designed for seamless connection in instrumentation systems. With precision engineering, this adapter ensures a secure fit between 3/16-inch tubing and 1/8-inch tube stubs. Its straight shape and durable construction make it ideal for demanding industrial applications, providing reliability and leak-free performance. Compliant with industry standards, this Griplok adapter guarantees efficient fluid control and long-lasting functionality.

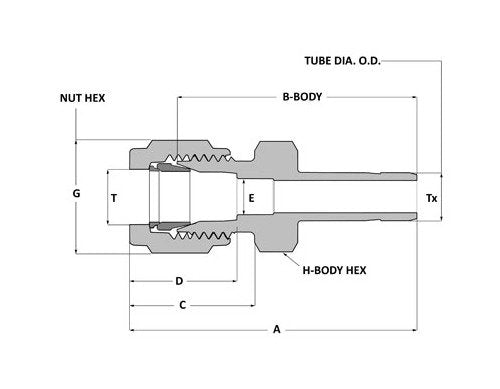

Product Specifications
Dimensions A
1.42 in
Dimensions B
1.11 in
Dimensions C
0.68 in
Dimensions D
0.59 in
Dimensions E
0.06 in
Dimensions G
1/2 in
Dimensions H
7/16 in
Dimensions T
3/16 in
Dimensions Tx
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TE x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
20 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
