Gripper® 143-9 Series 6 Inch ABS End of Pipe Plug
Gripper® 143-9 Series 6 Inch ABS End of Pipe Plug
SKU:HIG-2a0f21
Reliable Gripper® 143-9 Series ABS Wing Nut Plug for DWV and stack testing. End-of-pipe seal, inside-of-pipe flexibility, and rust-resistant zinc wing nut.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Gripper® 143-9 Series 6 Inch ABS End of Pipe Plug
$29.99
Quantity: 1
Claim Your Seller Account
Gripper® 143-9 Series 6 Inch ABS End of Pipe Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gripper® 143-9 Series ABS Wing Nut Plug is a reliable solution for DWV and stack testing applications. Constructed from glass-reinforced Acrylonitrile Butadiene Styrene (ABS), this plug features an innovative design with an end-of-pipe seal and inside-of-pipe flexibility, offering secure testing and sealing capabilities. Equipped with an extra-large zinc wing nut that resists rust, a durable rubber O-ring, and a galvanized carriage bolt to prevent corrosion, this plug ensures easy installation and long-term durability. With a nominal size of 6 inches and a maximum back pressure of 17 psi, the Gripper® plug is an ideal choice for sewer testing applications.
Product Specifications

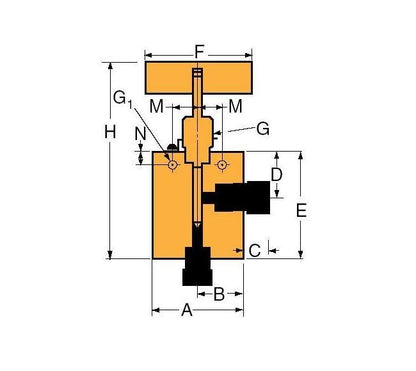

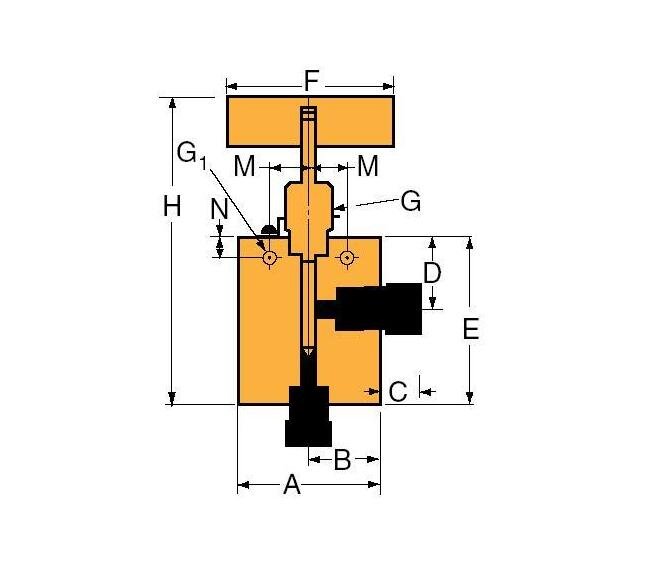

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.12 in | 53.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.74 in | 120.4 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.23
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
