Seal damaged threads with precision using the Gripper 143-8 Series Threaded Plug. Constructed with durable ABS and stainless steel, this plug ensures a secure fit in pipes while meeting industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Gripper 143-8 Series Threaded Plug 2.17-2.46 in Range
$29.99
Quantity: 1
Claim Your Seller Account
Gripper 143-8 Series Threaded Plug 2.17-2.46 in Range
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gripper 143-8 Series Clean-Out and Hub-Fit Plug is a versatile solution for sealing damaged threads and conducting tests in a wide range of pipes. With a range of 2.17 to 2.46 inches, this threaded plug is constructed with reinforced ABS and stainless steel materials, ensuring durability and reliability. The patented natural rubber threaded O-ring provides a secure seal, while the black color blends seamlessly with cast-iron pipes. Compliant with industry standards, this plug guarantees effective sealing and is suitable for both consumer and institutional applications.

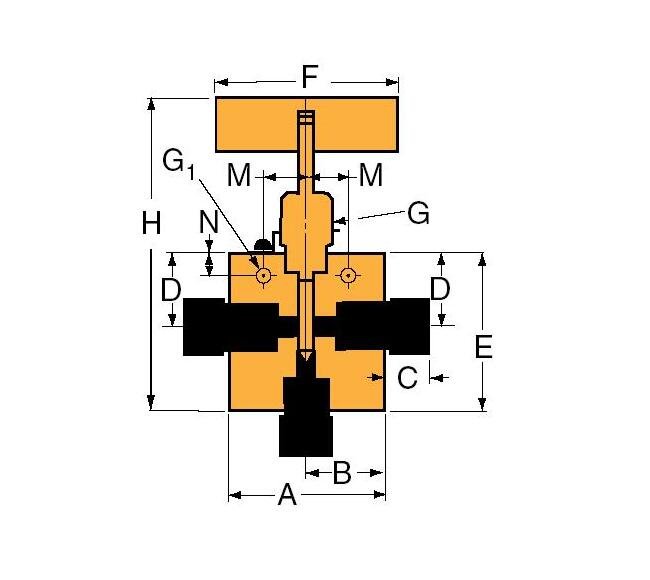

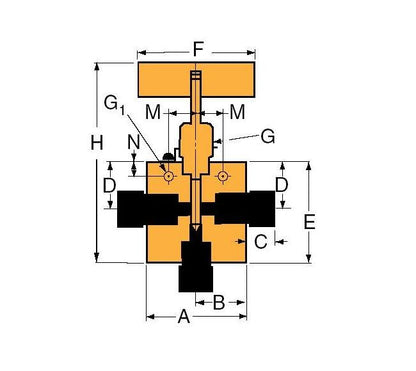

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.12 in | 130.05 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.33
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
