Gripper 143-9 Series 2" ABS Wing Nut End-of-Pipe Plug

Gripper 143-9 Series 2" ABS Wing Nut End-of-Pipe Plug

HIG-1b6605

Versatile Gripper 143-9 Series ABS Wing Nut Plug for secure DWV testing. End-of-pipe design with leak-proof seal.

$14.99
$14.99
Sale

Initiate Order

Gripper 143-9 Series 2" ABS Wing Nut End-of-Pipe Plug

Gripper 143-9 Series 2" ABS Wing Nut End-of-Pipe Plug

$14.99

Quantity: 1

Claim Your Seller Account

Gripper 143-9 Series 2" ABS Wing Nut End-of-Pipe Plug

Gripper 143-9 Series 2" ABS Wing Nut End-of-Pipe Plug

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Gripper 143-9 Series are reinforced ABS Wing Nut Plugs designed for DWV and stack testing. Featuring an end-of-pipe design to prevent falling in, and an inside-of-pipe option for versatile sealing. This durable plug is ideal for sewer testing and long-term applications, ensuring a secure seal with its wing nut and natural rubber o-ring. With a maximum back pressure of 17 psi, it meets stringent industry standards for safety and reliability.

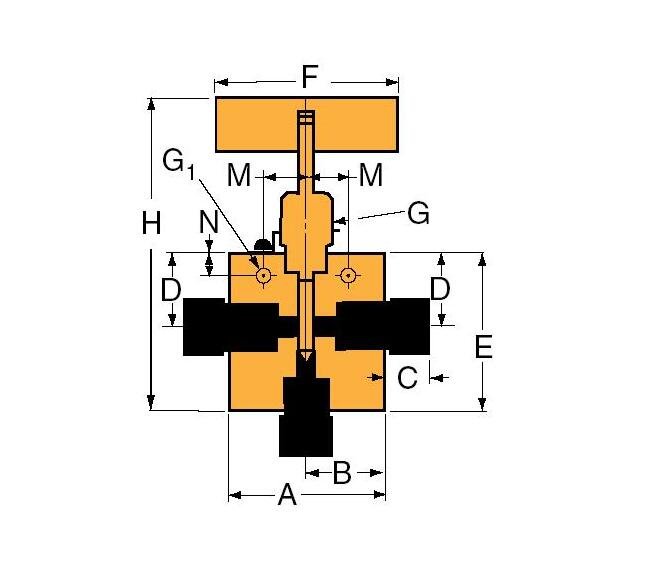

Product Specifications

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.12 in | 53.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.74 in | 120.4 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.23
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
