Gripper® 143-8 Series 3.23-3.5 in Threaded Plug

Gripper® 143-8 Series 3.23-3.5 in Threaded Plug

HIG-e1e791

Seal damaged threads and test pipes with Gripper® 143-8 Series 3.23-3.5 in Threaded Plug, reinforced with ABS & SS. Ideal for multiple applications.

$24.99
$24.99
Sale

Initiate Order

Gripper® 143-8 Series 3.23-3.5 in Threaded Plug

Gripper® 143-8 Series 3.23-3.5 in Threaded Plug

$24.99

Quantity: 1

Claim Your Seller Account

Gripper® 143-8 Series 3.23-3.5 in Threaded Plug

Gripper® 143-8 Series 3.23-3.5 in Threaded Plug

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Gripper® 143-8 Series Clean-Out and Hub-Fit Plug is designed for sealing damaged threads and testing applications. With a range of use from 3.23 to 3.5 inches, this plug features reinforced ABS and stainless steel construction, including a patented natural rubber threaded o-ring for a secure seal. Its black color complements cast-iron pipes and the stainless steel hardware ensures durability. Compliant with industry standards, this plug is ideal for both consumer and institutional buyers seeking reliable threaded plugs for various pipe applications.

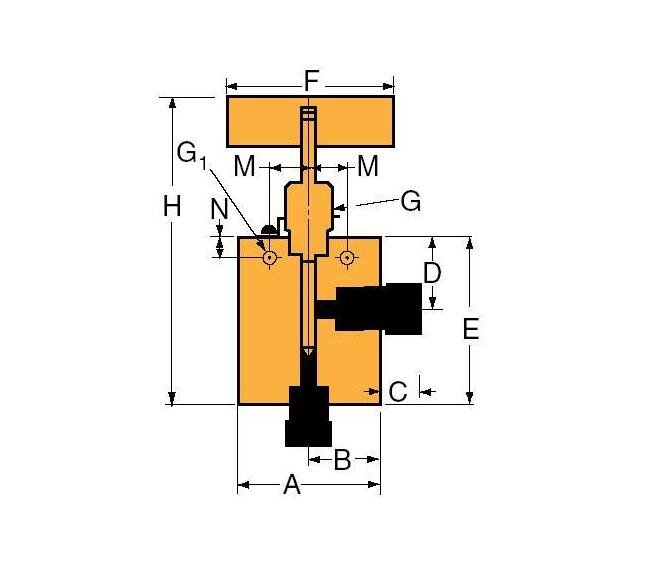

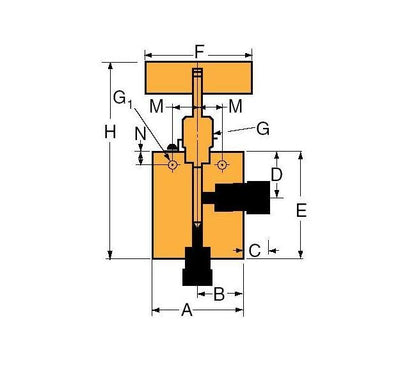

Product Specifications

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.62 in | 117.35 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm

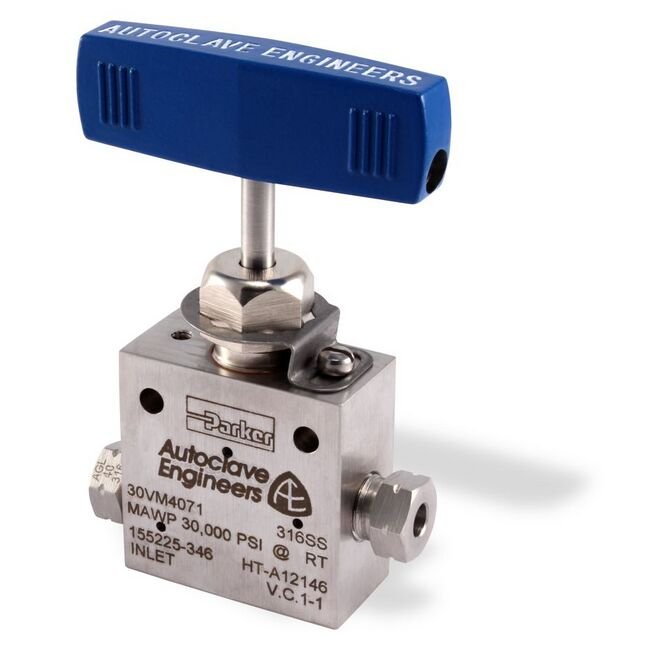

Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.12
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
