Gripper® 143-8 Series Threaded Plug 4.28-4.63 in Range

Gripper® 143-8 Series Threaded Plug 4.28-4.63 in Range

HIG-7dd64f

Seal damaged threads effectively with Gripper® 143-8 Series Threaded Plug. Durable ABS & SS construction with natural rubber o-ring seal for secure fit.

$24.99
$24.99
Sale

Initiate Order

Gripper® 143-8 Series Threaded Plug 4.28-4.63 in Range

Gripper® 143-8 Series Threaded Plug 4.28-4.63 in Range

$24.99

Quantity: 1

Claim Your Seller Account

Gripper® 143-8 Series Threaded Plug 4.28-4.63 in Range

Gripper® 143-8 Series Threaded Plug 4.28-4.63 in Range

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Gripper® 143-8 Series Threaded Plug offers a reliable solution for sealing damaged threads and conducting testing in pipelines. Made of Acrylonitrile Butadiene Styrene (ABS) and Stainless Steel (SS), this plug features reinforced construction for durability. The patented natural rubber threaded o-ring ensures a secure seal, while the black color complements cast-iron pipes. With a range of use from 4.28 to 4.63 inches and a maximum back pressure of 17 psi, this plug is suitable for various applications. Stay compliant with industry standards and ensure safety with this high-quality threaded plug.

Product Specifications

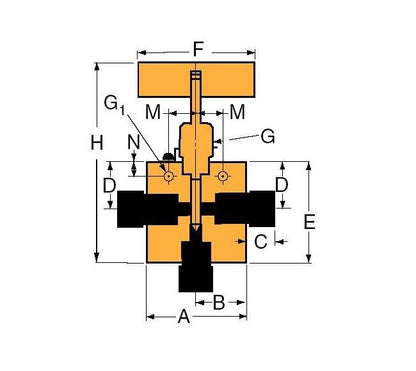

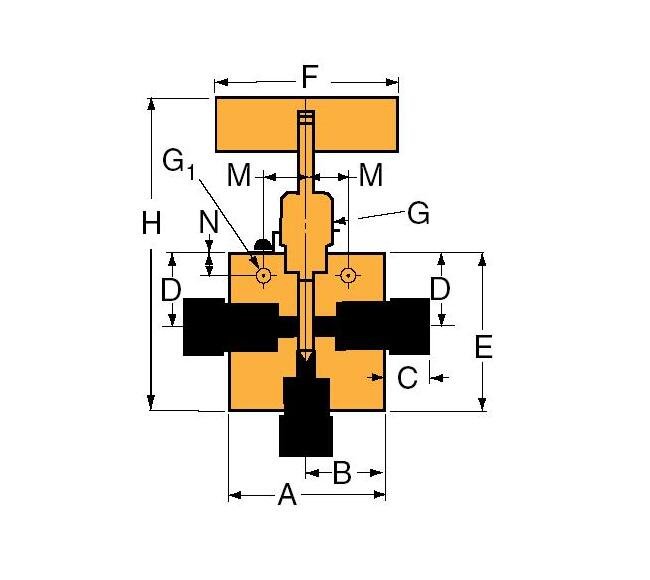

Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.12 in | 130.05 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.33
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
