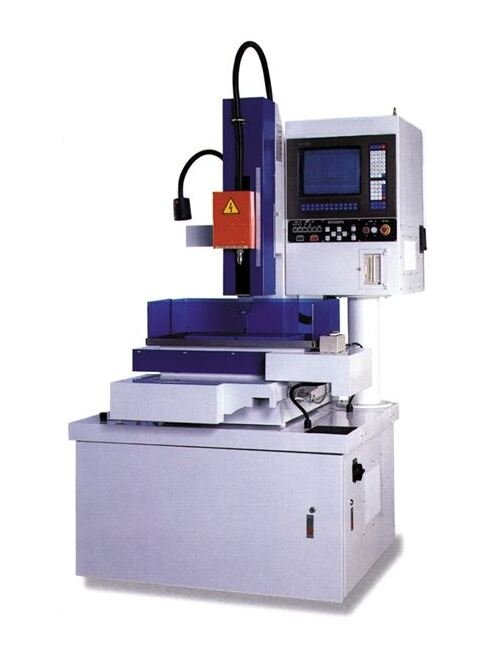

Gromax CNC EDM Drilling Machine - Efficient Precision Tool
Gromax CNC EDM Drilling Machine - Efficient Precision Tool
SKU:DRI-0452c6
Achieve unparalleled precision with the Gromax CNC EDM Drilling Machine. Simplified programming, auto electrode wear compensation, and efficient production make it ideal for industrial use.
Regular price
$28,999.00
Regular price
Sale price
$28,999.00
Unit price
per
Initiate Order
Gromax CNC EDM Drilling Machine - Efficient Precision Tool
$28,999.00
Quantity: 1
Claim Your Seller Account
Gromax CNC EDM Drilling Machine - Efficient Precision Tool
$28,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gromax CNC EDM Drilling Machine offers unparalleled precision with features like automatic edge finder, CAD/CAM program compatibility, and linear scale for accuracy. This versatile machine simplifies programming with G/M code, offers auto electrode wear compensation, and supports multiple coordinate displays. It ensures efficient drill production, seamless electrode changes, and reliable protection functions, making it ideal for industrial applications.
Product Specifications
Features Features
Auto edge finder is standard with this machine.Can do drill production quickly.CAD/CAM generated programs can be downloaded by Ethernet network RS232 or floppy disk.De-ionized water should be used.With online help, it's easy to do programming by G/M code.Linear scale enhances long term operation and excellent accuracy.EDM parameters stored and recall by: type of electrode, size of electrode & material of work piece.Auto Electrode Change (AEC) is possible to adapt on this machine (optional).Multiple coordinate display and full screen display of machining monitor and position.Auto program restart function, middle start, program graphic check function, with graphic and machine bounded.Auto electrode wear compensation--no need to program with electrode wear and guess how much electrode wear is. It automatically measures the electrode wear and compensates into the program.Manual Data Input (MDI) function--after tested the program may save the program as a regular file.Protection function while electrode touch work piece machine will stop.There are 6 coordinates in this system as work piece reference position.
Optional Accessories Optional Accessories
Auto filtering systemElectrode tubesGuidesKeyless chuck 0~1.5mmKeyless chuck 0~3.0mmDRAM memory ICAuto electrode changer 16pcs4th axis with linear motion4th axis with rotate function
Standard Accessories Standard Accessories
Paper filter 10mm (1pc)Ceramic guide 0.5mm, 1.0mm (1ea)Electrode tubes 0.5mm, 1.0mm (40ea)Electrode holder 0.3~3.0mm (1pc)Work light (1pc)Tool kit and tool box (1set)Back up program (1 CD-ROM)
Technical Specs Back Slide Travel C
null
Technical Specs Brands
Gromax
Technical Specs Capacity Of Fluid 264 Gal Optional
7.96 Gal in
Technical Specs Distance Between Guide And Table
1.57 to 5.51 in
Technical Specs Edm Parameter
By selection work piece, electrode material & size of EDM parameter
Technical Specs Graphic Function
Standard
Technical Specs Lay Out Width X Depth X Height
67 x 55 x 82 in
Technical Specs Manual Speed Slow Middle High Rapid By Parameter
4 speed (Slow, Middle, High, Rapid) by parameter setting
Technical Specs Maximum Power Ration
4 KVA | 6 KVA
Technical Specs Maximum Work Piece Size
27.6 x 23.6 x 5.5 in
Technical Specs Minimum Command Unit
0.0125 in | 0.005 mm
Technical Specs Model
SDNC30P
Technical Specs Monitor
10.4 inch TFT or 14 Inch color CRT
Technical Specs On Line Help
Standard
Technical Specs Optional Amperes Maximum Edm Current
25+25
Technical Specs Optional Program Axis
3 axis
Technical Specs Packing Size
86 x 17 x 86 in
Technical Specs Power Input
200 V | 220 V | 380 V | 415 V | 440 V | 575 V | 3 pH | 50/60 Hz
Technical Specs Resolution
0.0025 in | 0.001 mm
Technical Specs Servo Travel Xy
16 x 12 in
Technical Specs Servo Travel Z
15 in
Technical Specs Table Load Capacity
1100 lb
Technical Specs Table Size
20 x 16 in
Technical Specs Weight
3300 lb
