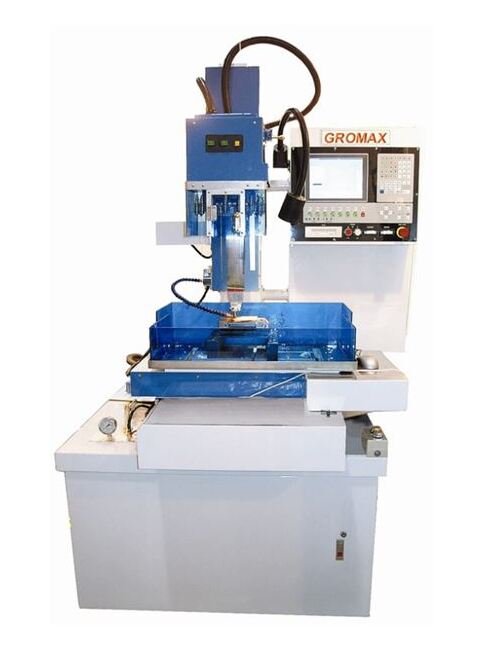

Gromax CNC EDM Drilling Machine - High Precision Industrial Grade
Gromax CNC EDM Drilling Machine - High Precision Industrial Grade
SKU:DRI-9acd1d
Achieve unparalleled precision with the Gromax CNC EDM Drilling Machine - ideal for industrial machining.
Regular price
$11,999.00
Regular price
Sale price
$11,999.00
Unit price
per
Initiate Order
Gromax CNC EDM Drilling Machine - High Precision Industrial Grade
$11,999.00
Quantity: 1
Claim Your Seller Account
Gromax CNC EDM Drilling Machine - High Precision Industrial Grade
$11,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gromax CNC EDM Drilling Machine offers exceptional precision and efficiency for industrial machining needs. With a robust work table weight capacity of 3300 lb, advanced features like Auto Electrode Change (AEC) compatibility, and the ability to store and recall EDM parameters, this machine ensures accurate and rapid drill production. It also supports CAD/CAM program downloads and boasts a Linear Scale for long-term operation accuracy. De-ionized water usage enhances performance while the 6-coordinate system provides precise workpiece positioning. Experience seamless programming, auto electrode wear compensation, and safety features like program restart and electrode touch protection.
Product Specifications
Features Features
Auto edge finder is standard with this machine.Can do drill production quickly.CAD/CAM generated programs can be downloaded by Ethernet network RS232 or floppy disk.De-ionized water should be used.With online help, it's easy to do programming by G/M code.Linear scale enhances long term operation and excellent accuracy.EDM parameters stored and recall by: type of electrode, size of electrode & material of work piece.Auto Electrode Change (AEC) is possible to adapt on this machine (optional).Multiple coordinate display and full screen display of machining monitor and position.Auto program restart function, middle start, program graphic check function, with graphic and machine bounded.Auto electrode wear compensation--no need to program with electrode wear and guess how much electrode wear is. It automatically measures the electrode wear and compensates into the program.Manual Data Input (MDI) function--after tested the program may save the program as a regular file.Protection function while electrode touch work piece machine will stop.There are 6 coordinates in this system as work piece reference position.
Optional Accessories Optional Accessories
Auto filtering systemElectrode tubesGuidesKeyless chuck 0~1.5mmKeyless chuck 0~3.0mmDRAM memory ICAuto electrode changer 16pcs4th axis with linear motion4th axis with rotate function
Standard Accessories Standard Accessories
Paper filter 10mm (1pc)Ceramic guide 0.5mm, 1.0mm (1ea)Electrode tubes 0.5mm, 1.0mm (40ea)Electrode holder 0.3~3.0mm (1pc)Work light (1pc)Tool kit and tool box (1set)Back up program (1 CD-ROM)
Technical Specs Brands
Gromax
Technical Specs Drill Capacity
0.006-0.250 in
Technical Specs Guide Travel Z3
N/A
Technical Specs Maximum Work Piece Size
32 x 25.5 x 27.5 in
Technical Specs Maximum Work Piece Weight
500 lb
Technical Specs Max Distance From Guide To Tabletop
15 in
Technical Specs Model
SDNC4030KS
Technical Specs Motorized Backslide Z2
13.84 in
Technical Specs Packing Dimension
2 pc
Technical Specs Quill Servo Travel Z1
13.4 in
Technical Specs Table Size
20.6 x 12.8 in
Technical Specs Table Travel
15.75 x 11.75 in
Technical Specs Work Table Weight Capacity
3300 lb
