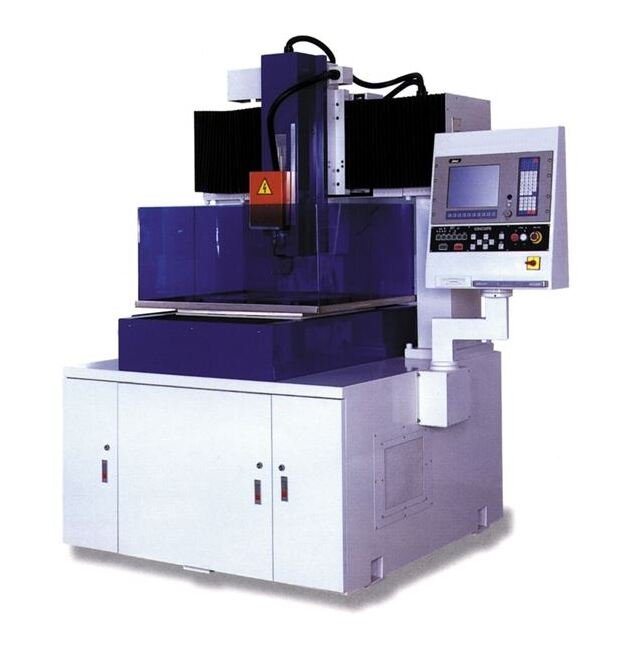

Gromax EDM Drilling Machine
Gromax EDM Drilling Machine
SKU:DRI-f7fba9
Achieve precision drilling with Gromax EDM Machine - Ideal for industrial applications, high accuracy, and efficiency.
Regular price
$29,999.99
Regular price
Sale price
$29,999.99
Unit price
per
Initiate Order
Gromax EDM Drilling Machine
$29,999.99
Quantity: 1
Claim Your Seller Account
Gromax EDM Drilling Machine
$29,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gromax EDM Drilling Machine offers precision drilling capabilities essential for industrial and institutional applications. With a robust build, advanced servo travel features, and compatibility with CAD/CAM programs, this machine ensures efficient production processes and unparalleled accuracy. Its diverse range of accessories and automatic functions streamline operations, making it a top choice for demanding workshops and manufacturing facilities.
Product Specifications
Features Features
Auto edge finder is standard with this machine.Can do drill production quickly.CAD/CAM generated programs can be downloaded by Ethernet network RS232 or floppy disk.De-ionized water should be used.With online help, it's easy to do programming by G/M code.Linear scale enhances long term operation and excellent accuracy.EDM parameters stored and recall by: type of electrode, size of electrode & material of work piece.Auto Electrode Change (AEC) is possible to adapt on this machine (optional).Multiple coordinate display and full screen display of machining monitor and position.Auto program restart function, middle start, program graphic check function, with graphic and machine bounded.Auto electrode wear compensation--no need to program with electrode wear and guess how much electrode wear is. It automatically measures the electrode wear and compensates into the program.Manual Data Input (MDI) function--after tested the program may save the program as a regular file.Protection function while electrode touch work piece machine will stop.There are 6 coordinates in this system as work piece reference position.
Optional Accessories Optional Accessories
Auto filtering systemElectrode tubesGuidesKeyless chuck 0~1.5mmKeyless chuck 0~3.0mmDRAM memory ICAuto electrode changer 16pcs4th axis with linear motion4th axis with rotate function
Standard Accessories Standard Accessories
Paper filter 10mm (1pc)Ceramic guide 0.5mm, 1.0mm (1ea)Electrode tubes 0.5mm, 1.0mm (40ea)Electrode holder 0.3~3.0mm (1pc)Work light (1pc)Tool kit and tool box (1set)Back up program (1 CD-ROM)
Technical Specs Back Slide Travel C
Manual move by motor drive /Program by servo (optional)
Technical Specs Brands
Gromax
Technical Specs Capacity Of Fluid 264 Gal Optional
13.2 Gal in
Technical Specs Distance Between Guide And Table
2 to 12 in
Technical Specs Edm Parameter
By selection work piece, electrode material & size of EDM parameter
Technical Specs Feed Back Unit With 1 Linear Scale
5 in
Technical Specs Graphic Function
Standard
Technical Specs Lay Out Width X Depth X Height
84 x 78 x 90 in
Technical Specs Manual Speed Slow Middle High Rapid By Parameter
7 speed
Technical Specs Maximum Power Ration
4 KVA | 6 KVA
Technical Specs Maximum Work Piece Size
32 x 24 x 12 in
Technical Specs Minimum Command Unit
0.0125 in | 0.005 mm
Technical Specs Model
SDNC4030KS
Technical Specs Monitor
10.4 inch TFT or 14 Inch color CRT
Technical Specs On Line Help
Standard
Technical Specs Optional Amperes Maximum Edm Current
25+25
Technical Specs Optional Program Axis
5 axis stand/ 4 axis
Technical Specs Packing Size
112 x 90 x 83 in
Technical Specs Power Input
200 V | 220 V | 380 V | 415 V | 440 V | 575 V | 3 pH | 50/60 Hz
Technical Specs Resolution
0.125 in | 0.005 mm
Technical Specs Servo Travel Xy
23.6 x 31.5 in
Technical Specs Servo Travel Z
14 in
Technical Specs Table Load Capacity
660 lb
Technical Specs Table Size
27.5 x 35.4 in
Technical Specs Weight
7700 lb
