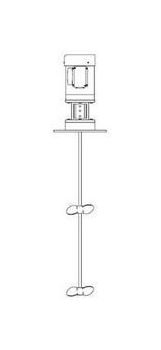

Grovhac Series 700 Flange Mount Mixer

Name: Grovhac Series 700 Flange Mount Mixer
Brand: Metafin Supply Company
SKU: MIX-fcac05
Price: 799.99 USD
Availability: OutOfStock

SKU:MIX-fcac05

Grovhac Series 700 Flange Mount Mixer - Versatile mixer with shaft support bearing, customizable motor options, and stainless steel components for efficient mixing operations.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Grovhac Series 700 Flange Mount Mixer is engineered with a shaft support bearing to ensure stability and minimize motor wear during operations. This versatile mixer is available in various flange sizes and materials, with a standard 12" x 12" square flange. Offering a range of motor options from 1/3 to 3 HP, including air, electric, variable-speed, or explosion-proof motors, this mixer can be customized to fit different application requirements. With options for direct or gear drive, stainless steel coupling, shaft, and mixing impellers, it is ideal for use with closed top tanks or open top tanks with a customer-supplied support bridge. To receive a formal quote, please fill out the Grovhac - Request Quote Form, and tank drawing services are also available upon request.

Product Specifications

Specifications Drive Unit

Direct

Specifications Manufacturer

Grovhac

Specifications Motor Size

1/3 hp

Specifications Motor Specifications

115V, 60Hz, 1Ph

Specifications Motor Speed

0-1725 rpm

Specifications Motor Type

TEFC

Specifications Single Propeller Dia S

4.5 "

Specifications Standard Shaft Dia

5/8 "

Specifications Standard Shaft Length

36 "

Grovhac Series 700 Flange Mount Mixer
