Grovhac Series 700 Flange Mount Mixer

Name: Grovhac Series 700 Flange Mount Mixer
Brand: Metafin Supply Company
SKU: MIX-bad921
Price: 899.0 USD
Availability: OutOfStock

SKU:MIX-bad921

Versatile Grovhac Series 700 Flange Mount Mixer with shaft support bearing, stainless steel components, multiple motor options, and customizable features.

$899.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

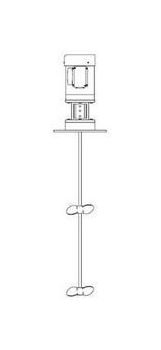

The Grovhac Series 700 flange mount mixer is a versatile solution for industrial mixing needs. Built with a shaft support bearing to stabilize the mixing shaft and minimize motor wear, this mixer offers options ranging from 1/3 to 3 HP with various flange sizes and materials, including a standard 12" x 12" square flange. Choose from air, electric, variable-speed, or explosion-proof motors, and opt for either direct or gear drive. Featuring stainless steel coupling, shaft, and mixing impellers, this mixer is ideal for use with closed top tanks or open top tanks with a customer-supplied support bridge. Contact us today to request a formal quote and explore custom tank drawings for your specific requirements.

Product Specifications

Specifications Drive Unit

Direct

Specifications Dual Propeller Dia D

4.5 "

Specifications Manufacturer

Grovhac

Specifications Motor Size

1/2 hp

Specifications Motor Specifications

115/230V, 60Hz, 1Ph

Specifications Motor Speed

1725 rpm

Specifications Motor Type

TEFC

Specifications Standard Shaft Dia

5/8 "

Specifications Standard Shaft Length

36 "

Grovhac Series 700 Flange Mount Mixer
