Grovhac Series 700 Flange Mount Mixer

Name: Grovhac Series 700 Flange Mount Mixer
Brand: Metafin Supply Company
SKU: MIX-9454f7
Price: 899.99 USD
Availability: OutOfStock

SKU:MIX-9454f7

Enhance mixing efficiency with Grovhac Series 700 Flange Mount Mixer, supporting various motor types and drive units.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

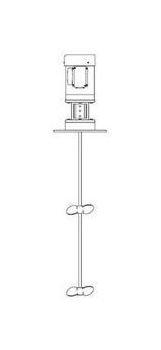

The Grovhac Series 700 Flange Mount Mixer is engineered with a shaft support bearing to stabilize the mixing shaft and prolong motor life. This mixer is highly customizable, offering various flange sizes and materials, with a 12" x 12" square flange as standard. Available in 1/3 to 3 HP options, it can be equipped with air, electric, variable-speed, or explosion-proof motors. Choose between direct or gear drive configurations, featuring stainless steel coupling, shaft, and mixing impellers. Ideal for closed top tanks and open top tanks with a customer-supplied support bridge.

Product Specifications

Specifications Drive Unit

Gear

Specifications Dual Propeller Dia D

11 "

Specifications Manufacturer

Grovhac

Specifications Motor Size

1 hp

Specifications Motor Specifications

115/230V, 60Hz, 1Ph

Specifications Motor Speed

425 rpm

Specifications Motor Type

TEFC

Specifications Standard Shaft Dia

1-1/4 "

Specifications Standard Shaft Length

36 "

Grovhac Series 700 Flange Mount Mixer
