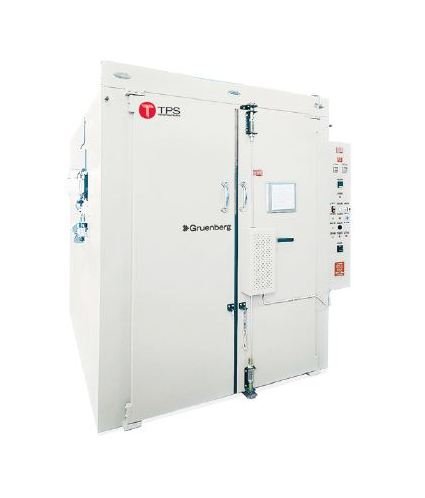

Gruenberg Solvent-Venting Ovens
Gruenberg Solvent-Venting Ovens
SKU:GRU-080408
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Gruenberg Solvent-Venting Ovens
$49.99
Quantity: 1
Claim Your Seller Account
Gruenberg Solvent-Venting Ovens
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
All standard Gruenberg ovens can be designed to house volatile atmospheres. Thermal Product Solutions designs all Class A ovens to conform to OSHA, NFPA 86A, Factory Mutual (FM) and Factory Insurance Association (FIA) requirements. As part of the safety design, Class A ovens must be equipped with a high exhaust rate: because the heating elements are an ignition source, a high exhaust rate is needed to dilute the volatile vapors below the “lower explosive limits.” As a result, the heating elements’ kW must be sufficiently increased to compensate for the heat loss caused by the above-normal exhaust rate. In addition, for a Class A oven to be energy efficient, the additional kW required must be carefully calculated according to solvent load and operating temperature requirements.
Product Specifications
Specifications Additional Features
Automatic electric ignition with pilot flame supervision by an electronic device for gas ovens
Specifications Features
Explosion venting | Separate power exhauster | Heating systems interlocked by differential switches | Purge timer | High-limit thermostat | Second heater contactor for electric ovens
Specifications Markings
Markings including various warning labels and a capacity curve
