GS-1000⢠Series Double Fold Glue Sealer - High-Speed Bag Gluer
GS-1000⢠Series Double Fold Glue Sealer - High-Speed Bag Gluer
SKU:MAC-6b81f2
Syntegon GS-1000â„¢ Series 245 Inch Double Fold Glue Sealer for high-speed bag gluing operations.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
GS-1000⢠Series Double Fold Glue Sealer - High-Speed Bag Gluer
$7,999.99
Quantity: 1
Claim Your Seller Account
GS-1000⢠Series Double Fold Glue Sealer - High-Speed Bag Gluer
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

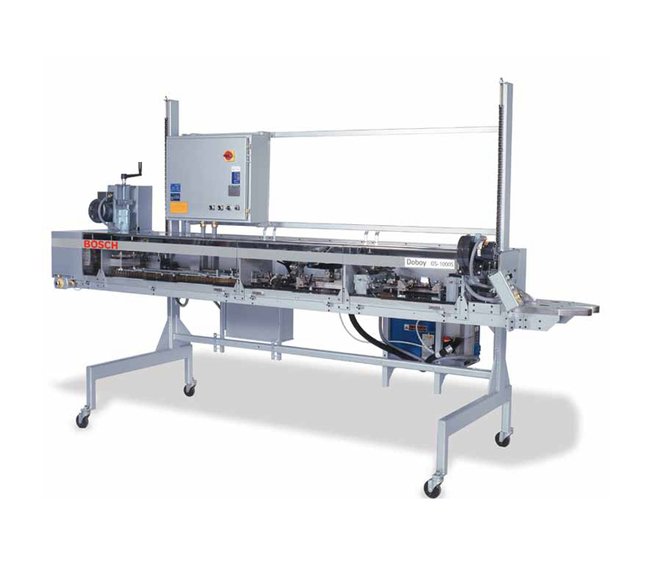

The GS-1000⢠Series 245 Inch Double Fold Glue Sealer by Syntegon is a reliable solution designed for high-speed, continuous flow-through operation. Featuring a patented jam-proof folder mechanism, it ensures precise and consistent folds on bag tops, even with unevenly fed or damaged bags. This machine is ideal for 3-shift/day operations, offering durability and efficiency. With a variety of technical specifications including a speed of up to 75 ft/min and options for hot melt or cold glue applications, the GS-1000™ Series delivers exceptional performance.
Product Specifications
Additional Information Additional Information
Parts and Service DependabilityOver 30,000 different Syntegon parts are in stock at all times. A computerized inventory control system assures immediate response, while professional Syntegon service technicians provide nationwide service, including installations, training, maintenance, and in-plant repairs.
Electrical Frequency
60 Hz
Electrical Number Of Phase
3
Electrical Voltage
440 to 220 V
Models Models
GS-1000XL for high-speed applications where inner liner heat seals are required.
Note Note
Products outside these limits may be packaged with machine modifications.
Outstanding Features Outstanding Features

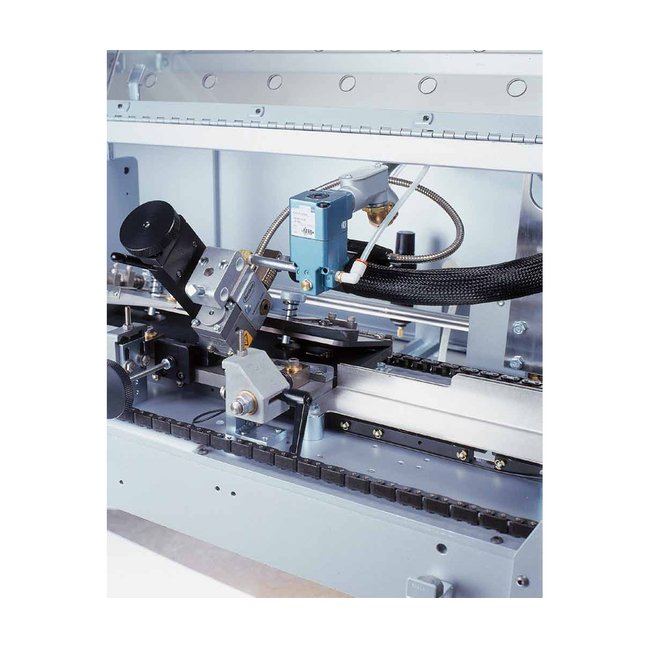

Sharp, Crisp Folds - Patented folders provide precision fold quality for straight and even folds. The folder is spring-loaded and fully adjustable. The folder hinges open for maintenance and bag adjustment. Designed for heavy-duty operation, the folder is constructed of polished plate steel.Consumer Friendly Closure - Two 3/4" folds provide a strong, sift-proof closure that is easy for the end user to open.Rotary Trimmer - Rotary trimmer cast housing provides precision alignment. The trimmer is equipped with special twin blades for consistent bag top trimming.Hot Melt or Cold Glue Unit - Choice of hot melt for high-speed applications or a pressurized cold glue extrusion system for secure seals at lower speeds. Includes micro-adjustable glue gun mount for accurate adhesive placement.Creasers - Prior to each fold, the creasers score the bag to assist in the folding process.Heat Seal Bars - Available on GS-1000 and GS-1000XL, cast iron heat bars provide inner bag liner seal.Dual Axis Glue Gun Mount - Allows precise adjustment of hot melt, which is critical to maintain accurate glue bead placement.Compression Section - The compression section is adjustable for varying bag thickness. Consistent pressure is applied to the fold for a strong secure seal. Speeds up to 100 feet per minute can be achieved.Smooth Continuous Feeding - A line shaft runs the entire length to drive trimmers and creasers. Sealed roller bearings provide smooth operation for long life and low maintenance.Bag Top Carrier Chains - Special flat face chains grip the bag for firm, positive control throughout the folding and compression sequence.Variable Speed Drive - Allows speed adjustment up to 100 inches per minute. VFD drives available as an option.
Specifications Applications
Bags
Specifications Bag Size
3 to 20 lb
Specifications Bag Style
Gussetted | Inner Liner Seal | Multi-Wall
Specifications Brand
Syntegon
Specifications Minimum Bag Width
3.5 to 15 in
Technical Specifications Glue Applicator
Nordson® or Valco, Others Upon Request
Technical Specifications Glue Type
Hot Melt
Technical Specifications Height
86 in
Technical Specifications Height Range
35 to 79 in
Technical Specifications Length
245 in
Technical Specifications Speed
Up to 75 ft/min
Technical Specifications Width
44.75 in
