GUARDIAN 2317 Custom Interior Case
GUARDIAN 2317 Custom Interior Case
SKU:CAR-19fbeb
Unrivaled durability and tailored protection in the GUARDIAN 2317 Custom Interior Case. Certified to IP67 standards, with customizable interior foam options and corrosion-proof hinges.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
GUARDIAN 2317 Custom Interior Case
$199.99
Quantity: 1
Claim Your Seller Account
GUARDIAN 2317 Custom Interior Case
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

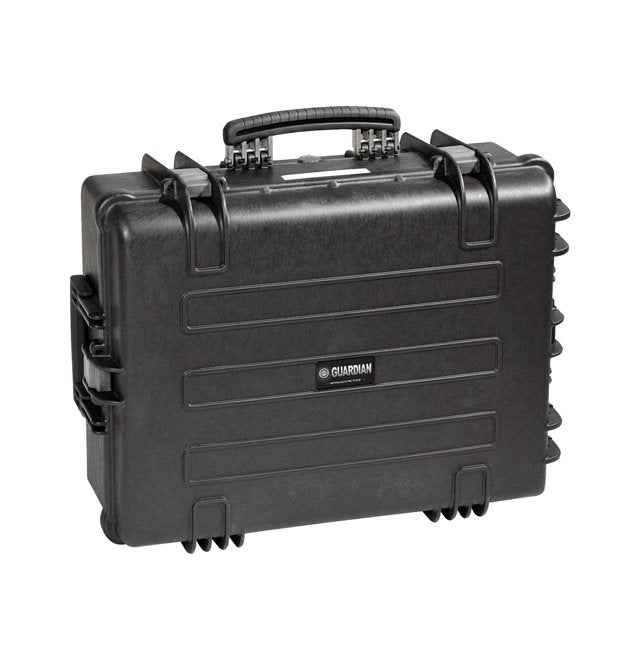

The GUARDIAN 2317 Case with Custom Interior offers unparalleled durability and tailored protection for diverse applications. Crafted from high-strength Injected Copolymer Polypropylene, this case is certified up to 1M depth to IP67, ensuring resistance to chemicals, water, and extreme temperatures from -33°C to 105°C. With customizable foam options, internal mounting slots, and corrosion-proof metal hinges, the GUARDIAN 2317 provides secure storage for sensitive equipment. It meets military standard qualifications and features jam-free purge valves, making it an ideal choice for professional applications.
Product Specifications
Accessories Accessories
Panel RingLid PanelSet of 6 Panel Mounting Brackets (Plastic)Set of 6 Panel Mounting Brackets (Metal)Set of 6 Plastic Blind InsertsPadlock with a KeyPadlock with 3 DigitsTSA Approved Padlock with 4 Digits
Additional Information Additional Information
Resistant to chemicals, water, humidity, dustTemperature Rating -33°C/+90°CJam-free purge valves and latchesRemovable Lids on Some modelsInternal Mounting Slots, Brackets and RingsStandard or Custom Foam InteriorsEasy StackabilitySolid O-Ring SealCorrosion Proof Metal Hinges and Wheel PinsIP67 - STANAG 4280 (ed. 2) - DEF STAN 81-41 (lev. J) - MIL-STD 810FMany Optional Accessories AvailableLifetime Warranty
Features Features
High-strength Injected Copolymer Polypropylene Structural Resin ConstructionTemperature Rating of -27.4/+194°F -33/+90°CCertified up to 1M Depth to IP67Case, Latches & Handles Resistant To Any Kind Of Chemical Fluid Acid Corrosion (SKYDROL)
Specifications 2 Man Handles
YES
Specifications Certifications
IP67 - STANAG 4280 (ed. 2) - DEF STAN 81-41 (lev. J) - MIL-STD 810F
Specifications Colors
Black Case Shells, Grey Latches
Specifications Construction Material
Injection Molded Copolymer Polypropylene
Specifications Custom Foam
YES
Specifications Empty
NO
Specifications Handle Quantity
3
Specifications Inside Base
6.3125 in | 160 mm
Specifications Inside Height
8.6875 in | 220 mm
Specifications Inside Length
22.8125 in | 580 mm
Specifications Inside Lid
2.375 in | 60 mm
Specifications Inside Width
17 5/16 in | 440 mm
Specifications Latch Quantity
4
Specifications Max Buoyancy
80.9 lb | 36.7 kg
Specifications Max Temperature Rating
105 ºC | 209 ºF
Specifications Min Temperature Rating
-33 ºC | -27.4 ºF
Specifications Outside Height
10.3125 in | 245 mm
Specifications Outside Length
25.5625 in | 650 mm
Specifications Outside Width
20.0625 in | 510 mm
Specifications Pressure Release Valve
AUTOMATIC
Specifications Reinforced Lock Holes
NO
Specifications Shockproof
YES
Specifications Standard Availability
Request Quote
Specifications Standard Foam
NO
Specifications Stock Status
No
Specifications Telescoping Handle
NO
Specifications Volume
14.79 gal | 56.1 L
Specifications Watertight
YES
Specifications Weight Empty
15.78 lb | 7.16 kg
Specifications Weight With Foam
18.49 lb | 8.39 kg
Specifications Wheels
NO
