GUARDIAN 5314D Custom Interior Injection Molded Case
GUARDIAN 5314D Custom Interior Injection Molded Case
SKU:CAR-26ecc3
High-strength custom interior case with military-grade durability for professional applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
GUARDIAN 5314D Custom Interior Injection Molded Case
$289.99
Quantity: 1
Claim Your Seller Account
GUARDIAN 5314D Custom Interior Injection Molded Case
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

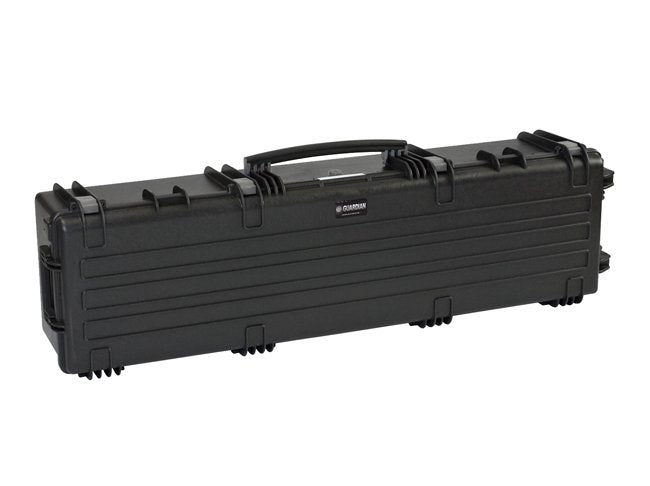

The GUARDIAN 5314D Case with Custom Interior is expertly engineered with a high-strength Injected Copolymer Polypropylene Structural Resin Construction, achieving military standard qualifications for exceptional durability. It offers a temperature rating of -27.4/+194°F, making it resistant to harsh conditions. With a certified watertight design up to 1M depth to IP67, this case provides superior protection against chemicals, water, humidity, and dust. Featuring customizable foam solutions and internal hardware mounting panels, it ensures tailored protection for professional applications. This case is equipped with automatic pressure release valves, corrosion-proof metal hinges, and wheel pins for added security and longevity.
Product Specifications
Accessories Accessories
Panel RingLid PanelSet of 6 Panel Mounting Brackets (Plastic)Set of 6 Panel Mounting Brackets (Metal)Set of 6 Plastic Blind InsertsPadlock with a KeyPadlock with 3 DigitsTSA Approved Padlock with 4 Digits
Additional Information Additional Information
Resistant to chemicals, water, humidity, dustTemperature Rating -33°C/+90°CJam-free purge valves and latchesRemovable Lids on Some modelsInternal Mounting Slots, Brackets and RingsStandard or Custom Foam InteriorsEasy StackabilitySolid O-Ring SealCorrosion Proof Metal Hinges and Wheel PinsIP67 - STANAG 4280 (ed. 2) - DEF STAN 81-41 (lev. J) - MIL-STD 810FMany Optional Accessories AvailableLifetime Warranty
Features Features
High-strength Injected Copolymer Polypropylene Structural Resin ConstructionTemperature Rating of -27.4/+194°F -33/+90°CCertified up to 1M Depth to IP67Case, Latches & Handles Resistant To Any Kind Of Chemical Fluid Acid Corrosion (SKYDROL)
Specifications 2 Man Handles
YES
Specifications Certifications
IP67 - STANAG 4280 (ed. 2) - DEF STAN 81-41 (lev. J) - MIL-STD 810F
Specifications Colors
Black Case Shells, Grey Latches
Specifications Construction Material
Injection Molded Copolymer Polypropylene
Specifications Custom Foam
YES
Specifications Empty
NO
Specifications Handle Quantity
3
Specifications Inside Base
9.0625 in | 230 mm
Specifications Inside Height
10.6875 in | 272 mm
Specifications Inside Length
53.125 in | 1350 mm
Specifications Inside Lid
0.017241379 in | 42 mm
Specifications Inside Width
13.75 in | 350 mm
Specifications Latch Quantity
4
Specifications Max Buoyancy
214.95 lb | 97.5 kg
Specifications Max Temperature Rating
114 ºC | 218 ºF
Specifications Min Temperature Rating
-33 ºC | -27.4 ºF
Specifications Outside Height
11.625 in | 296 mm
Specifications Outside Length
56.3125 in | 1430 mm
Specifications Outside Width
16.3125 in | 415 mm
Specifications Pressure Release Valve
AUTOMATIC
Specifications Reinforced Lock Holes
NO
Specifications Shockproof
YES
Specifications Standard Availability
Request Quote
Specifications Standard Foam
NO
Specifications Stock Status
No
Specifications Telescoping Handle
NO
Specifications Volume
33.94 gal | 128.5 L
Specifications Watertight
YES
Specifications Weight Empty
25.79 lb | 11.7 kg
Specifications Weight With Foam
32.84 lb | 14.9 kg
Specifications Wheels
YES
